Nissan-Datsun
›
2006
›
Sentra SE-R Spec V
›
Repair and Diagnosis
›
Transmission
›
Manual Transmission
›
RS6F51H
›
Transaxle Assembly
›
Component Parts
›
Final Drive Components
Final Drive Components

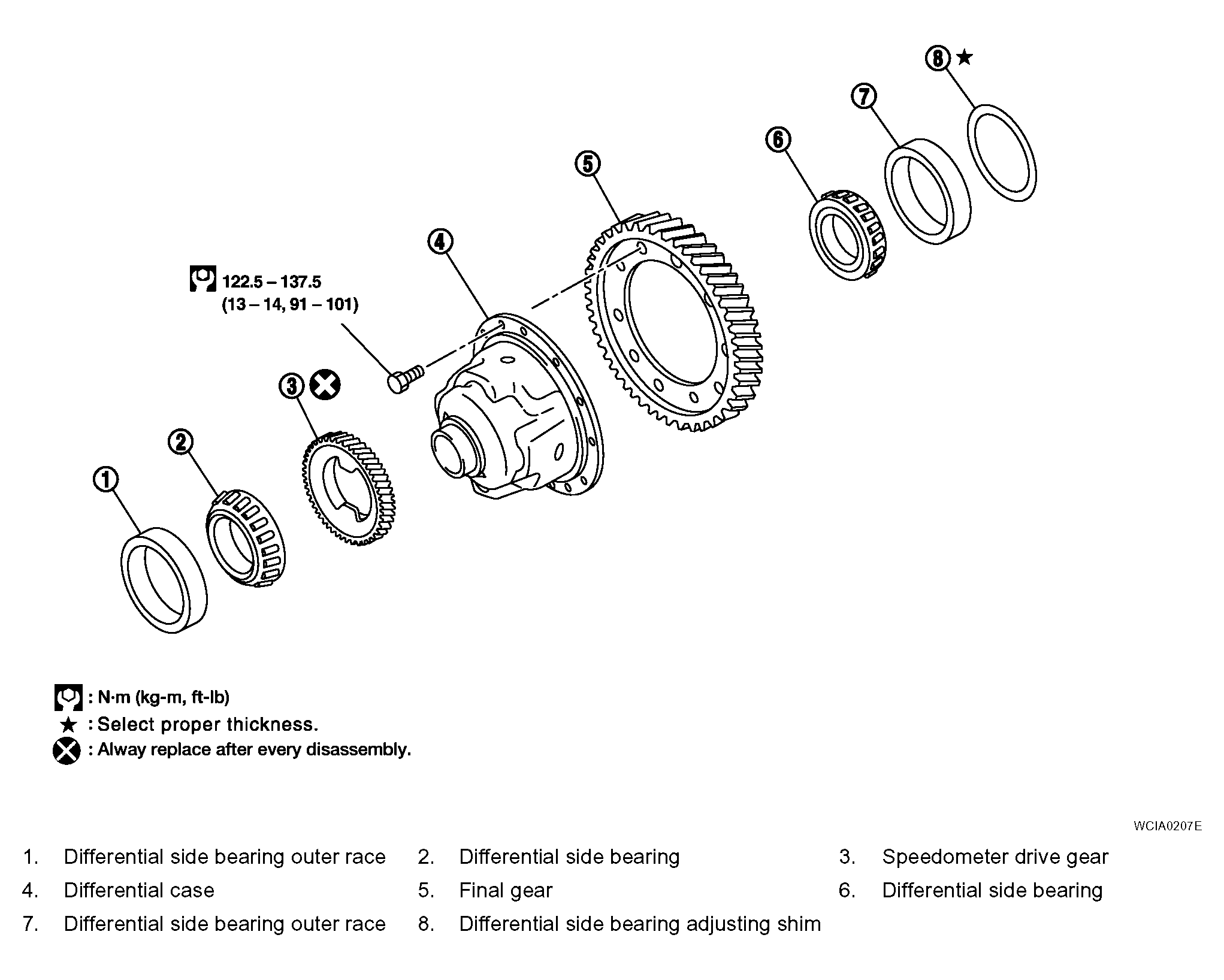

Fig 1: Final Drive Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
