Body (Alignment): Alignment: Notes

• All dimensions indicated in figures are actual ones.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) indicates the measuring point value is the same on both sides.
• The coordinates of the measurement points are the distances measured from the standard line of "X", "Y" and "Z".

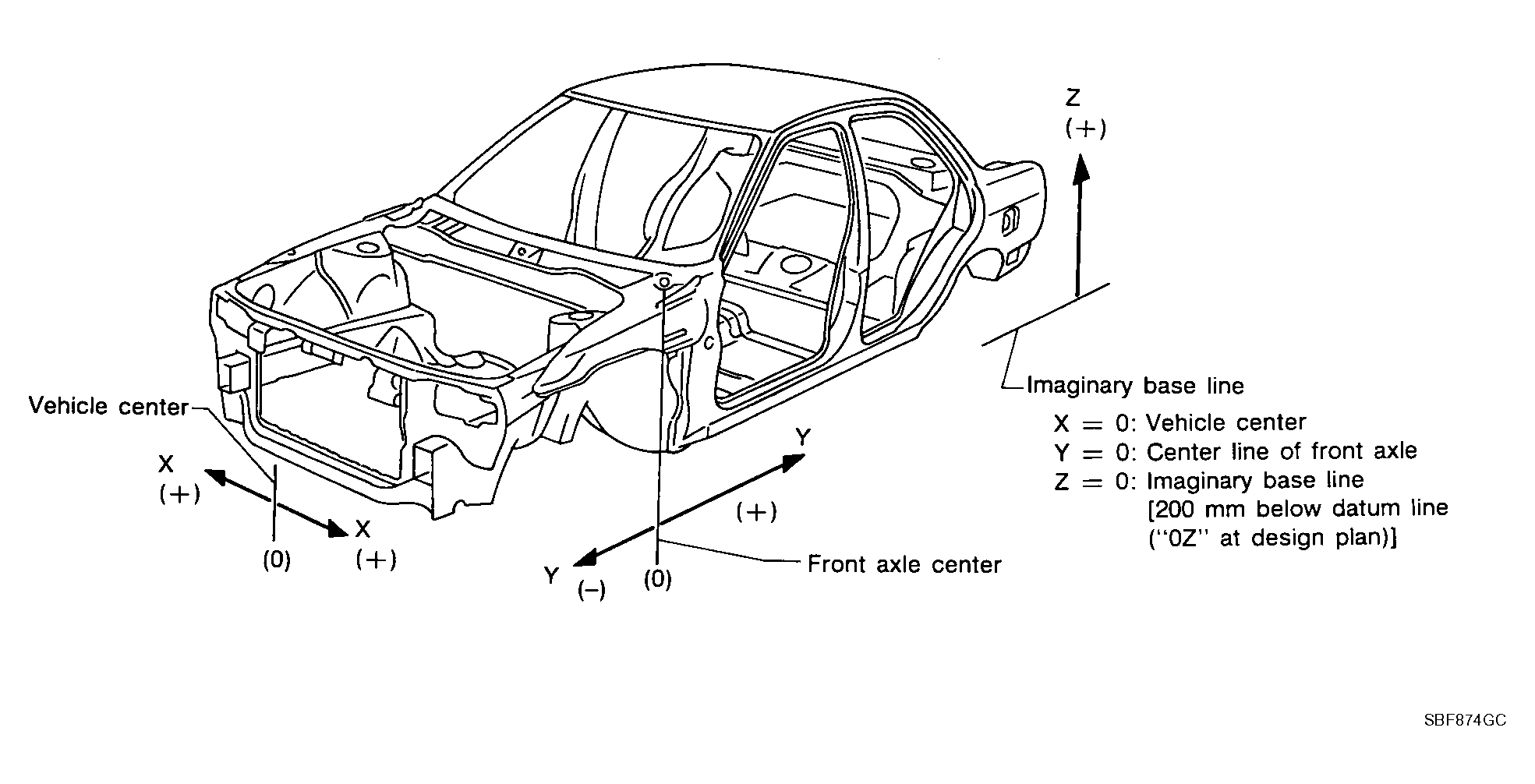

Fig 1: Identifying Body (Alignment) Dimensions

Courtesy of NISSAN MOTOR CO., U.S.A.
