2-Pole Lift

WARNING: When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines and sill spoiler.

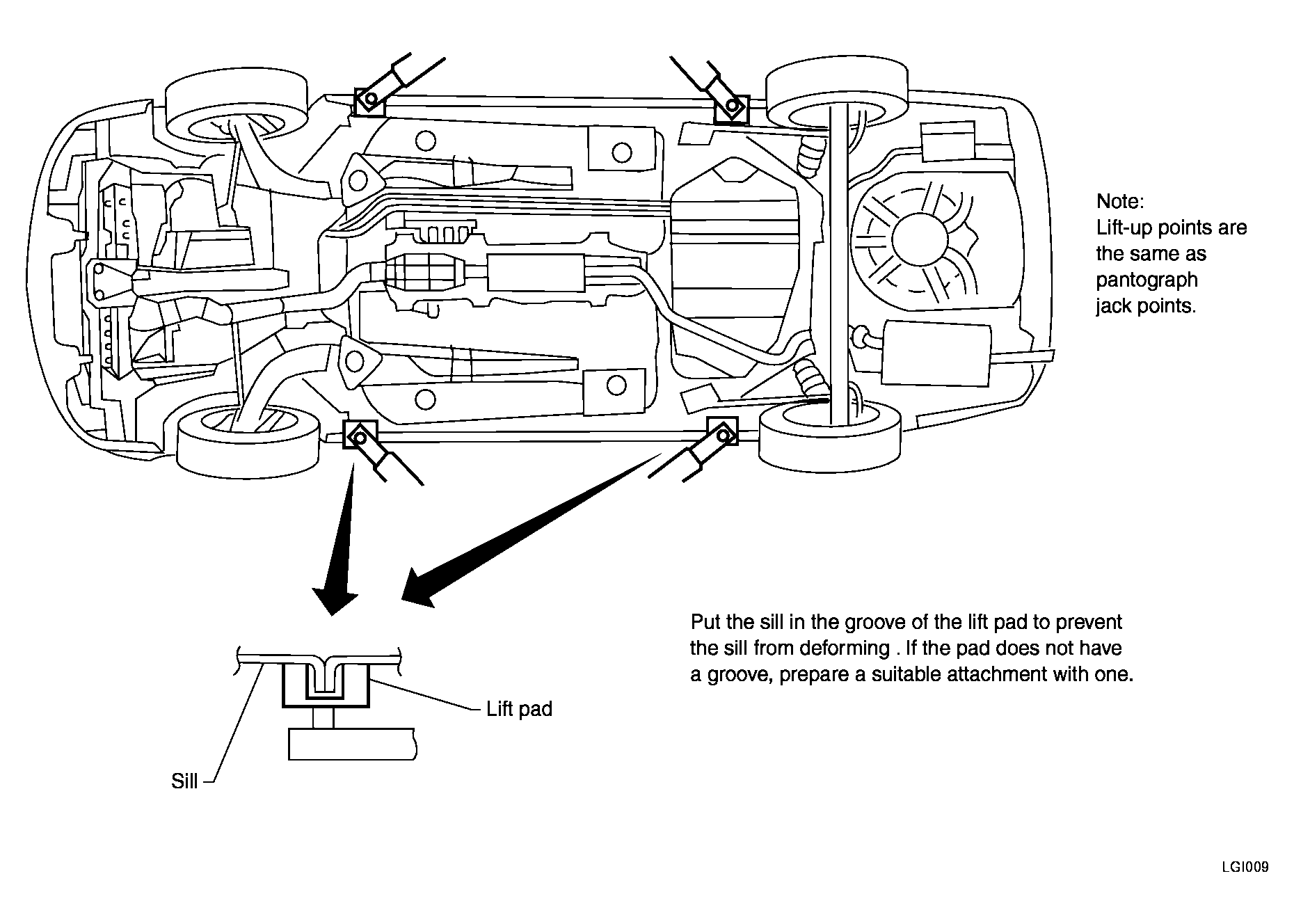

Fig 1: Identifying 2-Pole Lift Points
G04190094Courtesy of NISSAN MOTOR CO., U.S.A.
