Smart Entrance Control Unit: Schematic

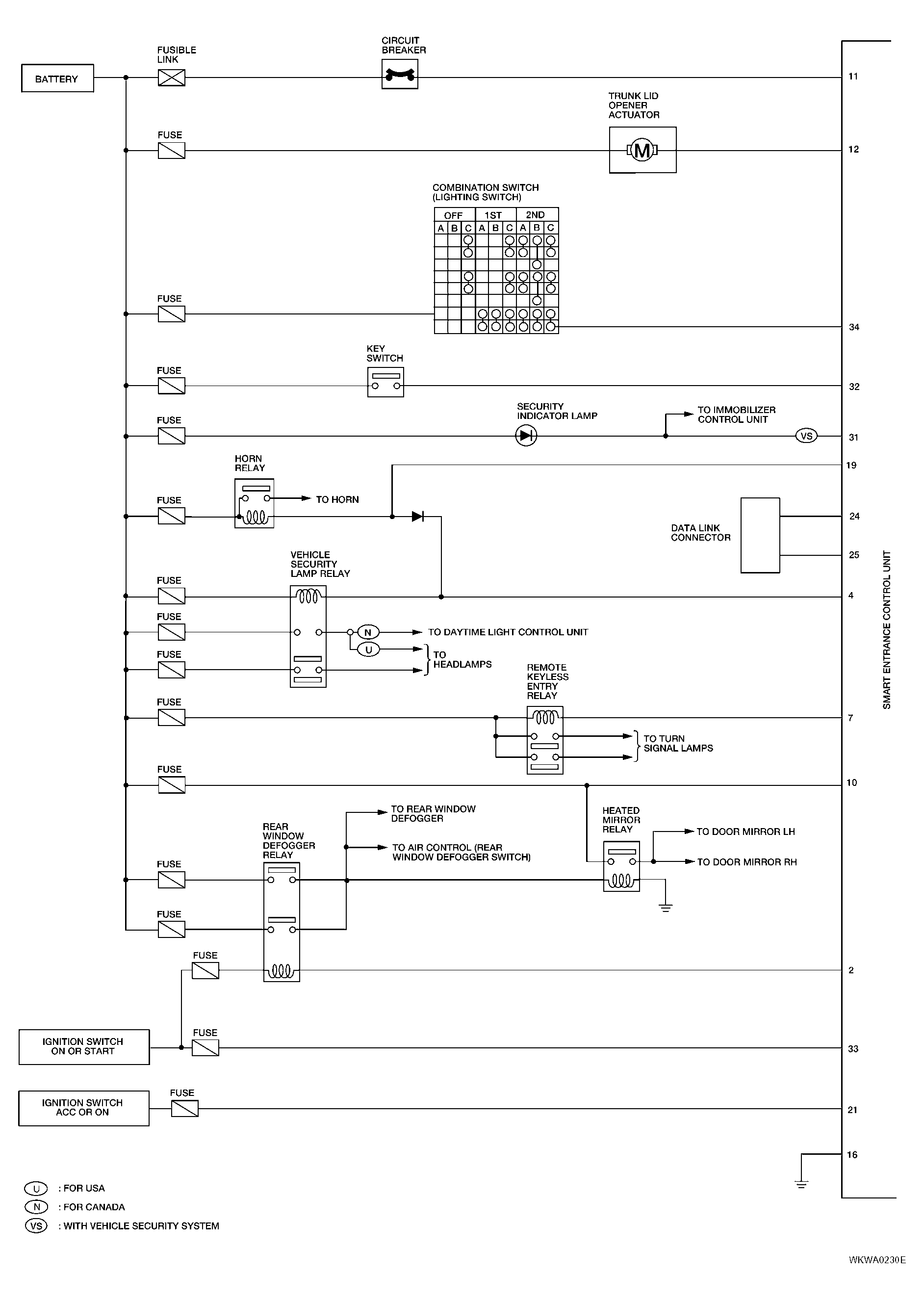

Fig 1: Smart Entrance Control Unit Schematic Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

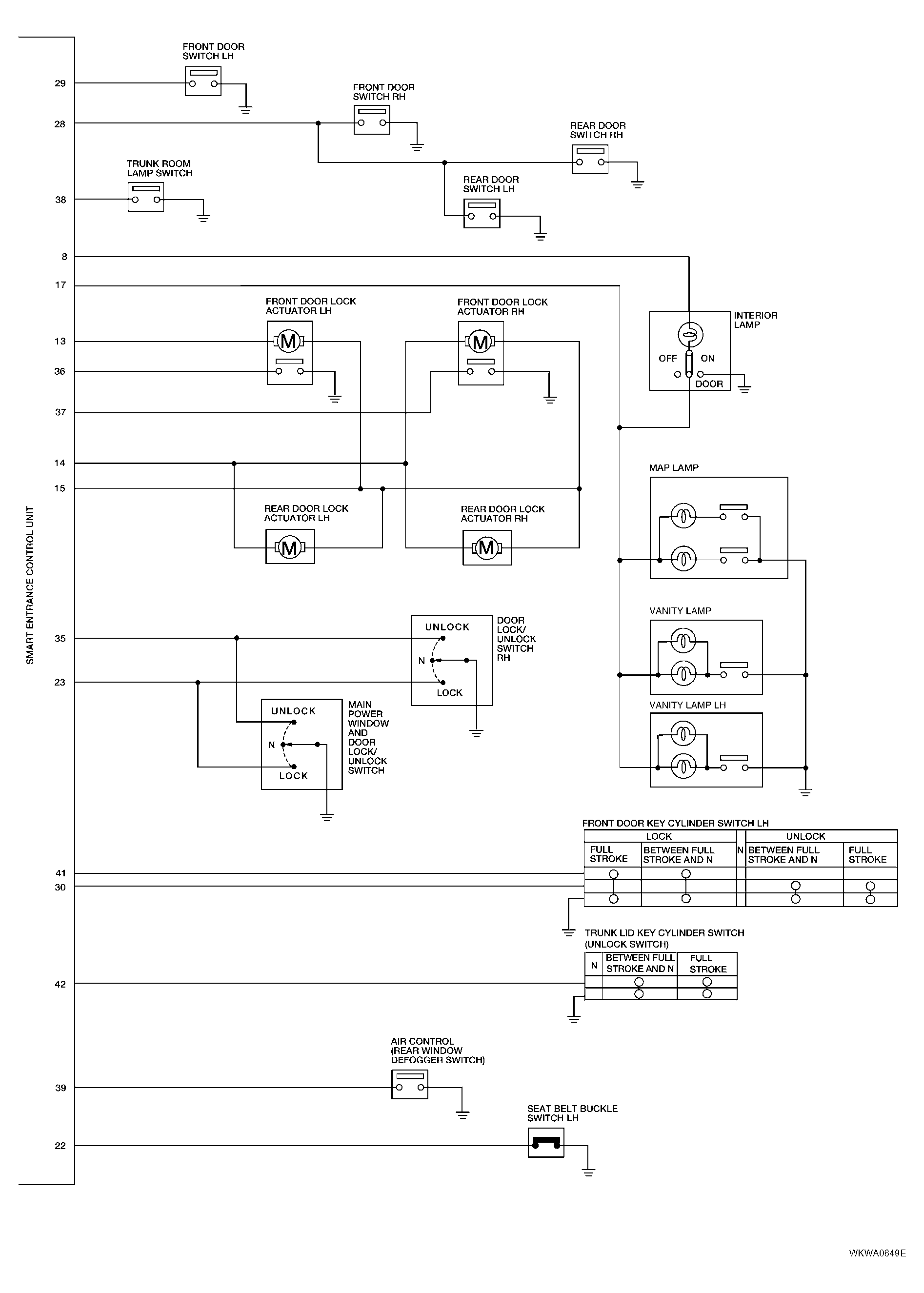

Fig 2: Smart Entrance Control Unit Schematic Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
