Door Lock/Unlock Switch LH Check

With CONSULT-II

Check door lock/unlock switch ("LOCK SW DR/AS"/"UNLK SW DR/AS") in "DATA MONITOR" mode with CONSULT-II.

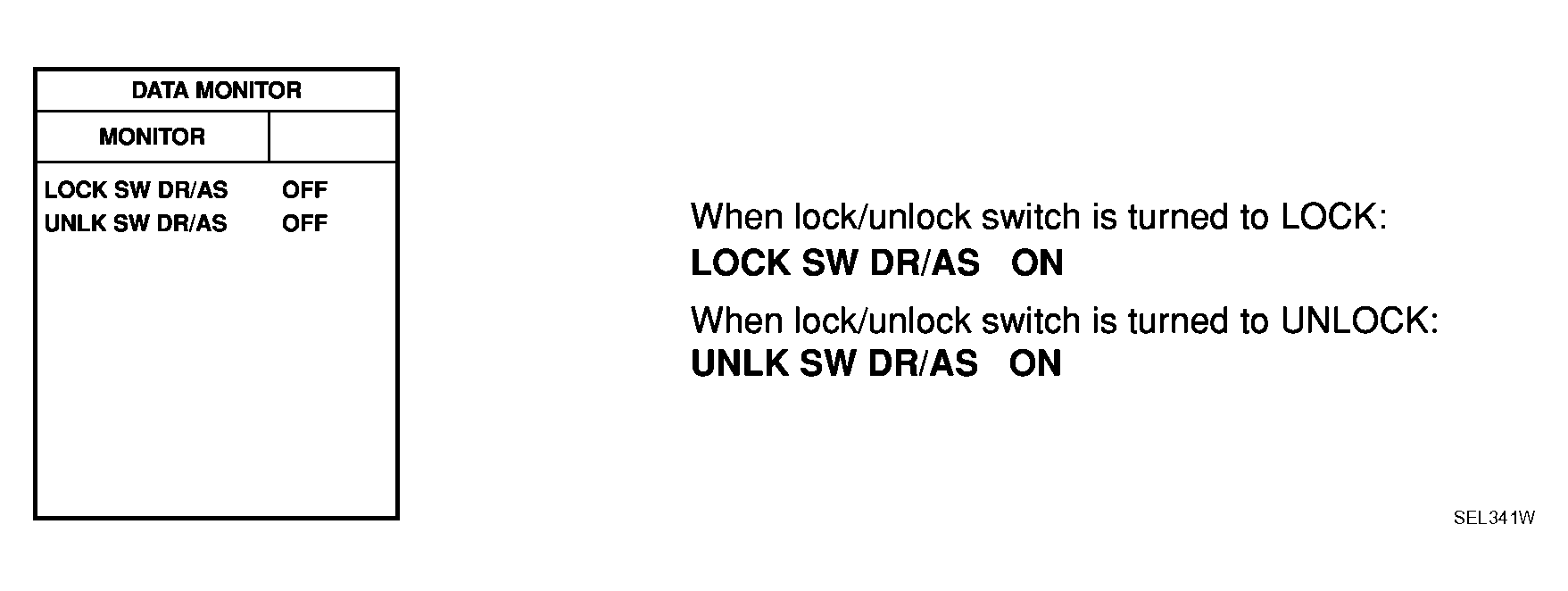

Fig 1: CONSULT-II Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Disconnect smart entrance control unit harness connector.
2. Check continuity between smart entrance control unit harness connector terminal 23 or 35 and ground.

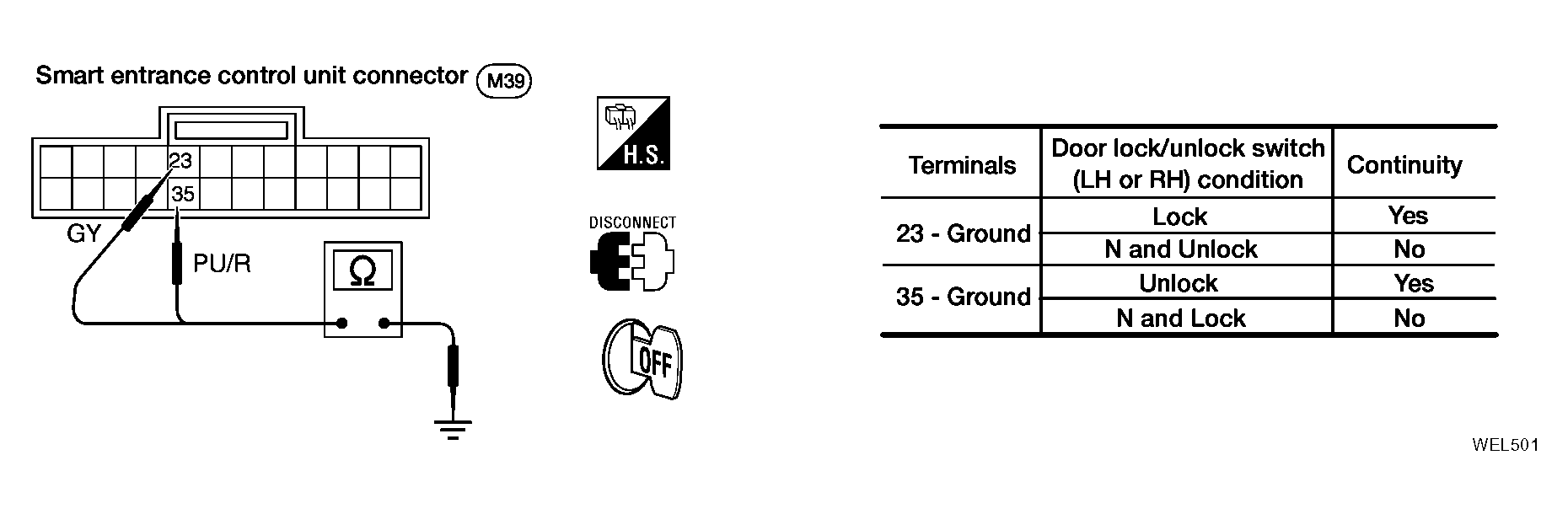

Fig 2: Checking Continuity Between Smart Entrance Control Unit Connector Terminal 23 Or 35 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "FIG. 2 ".

OK or NG

OK: Door lock/unlock switch is OK.

NG: GO TO 2.

1. Disconnect door lock/unlock switch harness connector.
2. Check continuity between door lock/unlock switch LH terminals.

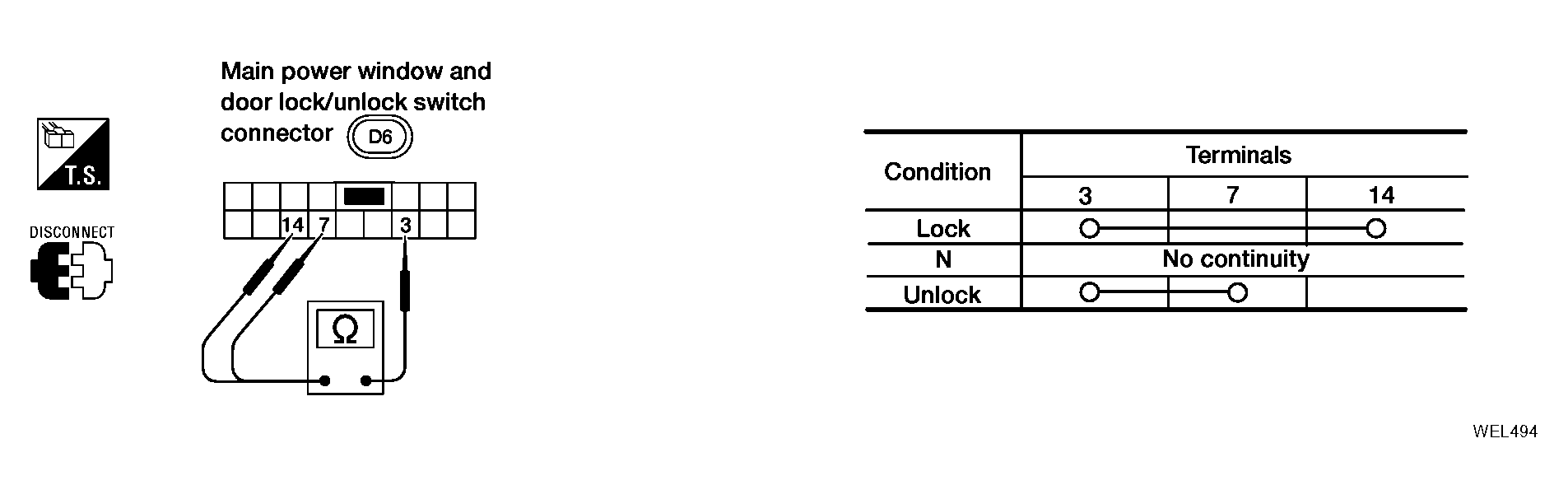

   Fig 3: Checking Continuity Between Door Lock/Unlock Switch LH Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the following.

• Ground circuit for door lock/unlock switch
• Harness for open or short between door lock/unlock switch and smart entrance control unit connector

NG: Replace door lock/unlock switch.
