Wheel Hub: Installation

Installation is in the reverse order of removal.

• With vehicles equipped with ABS, press-fit sensor rotor into wheel hub bearing using a drift.

  Tool number

  A: ST30720000

  B: KV40104710

  CAUTION: Do not reuse sensor rotor. When installing, replace it with a new one.
  Fig 1: Press-Fitting Sensor Rotor Into Wheel Hub Bearing Using Drift

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Press-fit sensor rotor as far as the location shown in figure.
• Install wheel hub bearing.

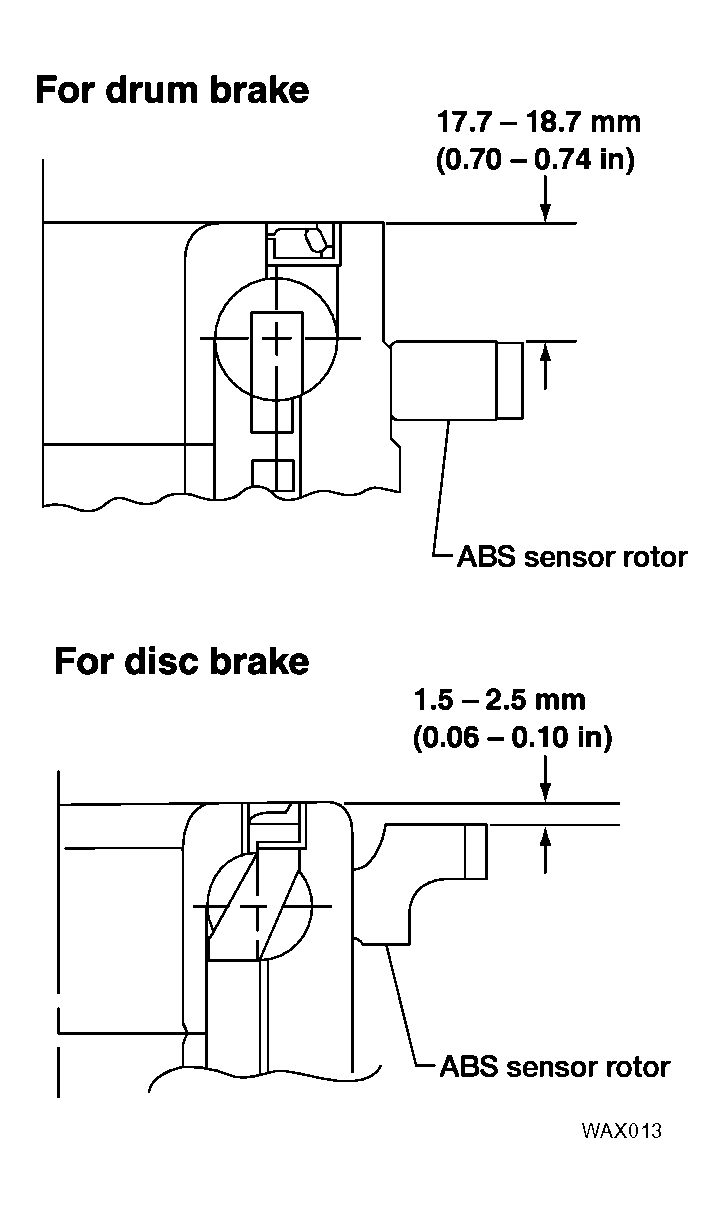

  Fig 2: Positions For Fitting Sensor Rotor

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Tighten wheel bearing lock nut.

  Before tightening, apply oil to threaded portion of rear spindle.

  CAUTION: Do not reuse wheel bearing lock nut. When installing, replace it with a new one.

  Wheel bearing lock nut: 187 - 255 N.m (19 - 26 kg-m, 138 - 188 ft-lb)

  Fig 3: Tightening Wheel Bearing Lock Nut

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Check that wheel bearings operate smoothly.
• Check wheel hub bearing axial end play.

  Axial end play: 0.05 mm (0.0020 in) or less

• Clinch two places of lock nut.
  Fig 4: Clinching Lock Nut

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Install hub cap using a suitable tool.
  CAUTION: Do not reuse hub cap. When installing, replace it with a new one.

Fig 5: Installing Hub Cap Using Suitable Tool

Courtesy of NISSAN MOTOR CO., U.S.A.
