Preliminary Check

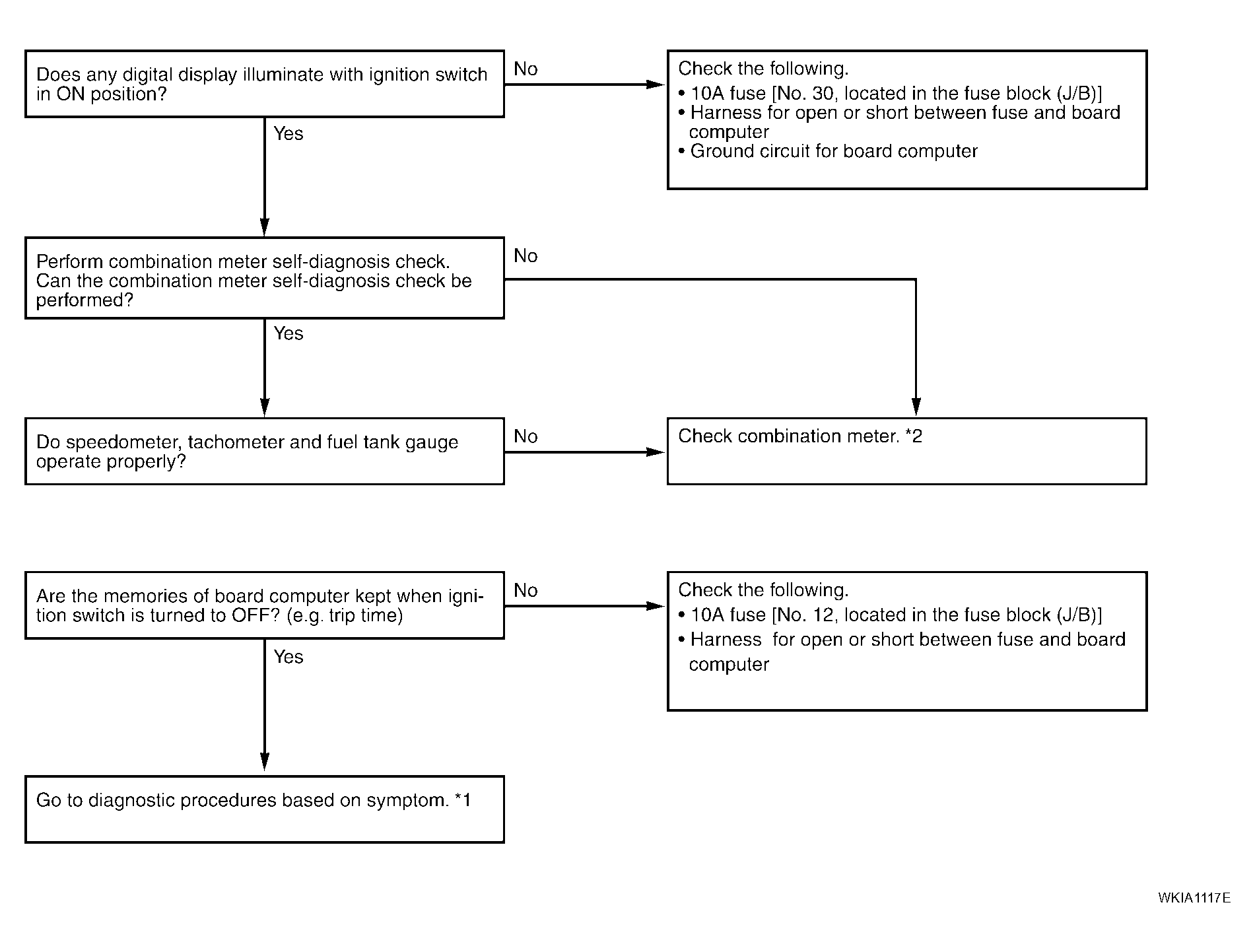

Fig 1: Trouble Diagnoses Flow Chart
G04195494Courtesy of NISSAN MOTOR CO., U.S.A.
*1. DIAGNOSIS PROCEDURE
*2. PRELIMINARY CHECK
