Wiring Diagram - B/COMP -
Wiring Diagram - B/COMP -

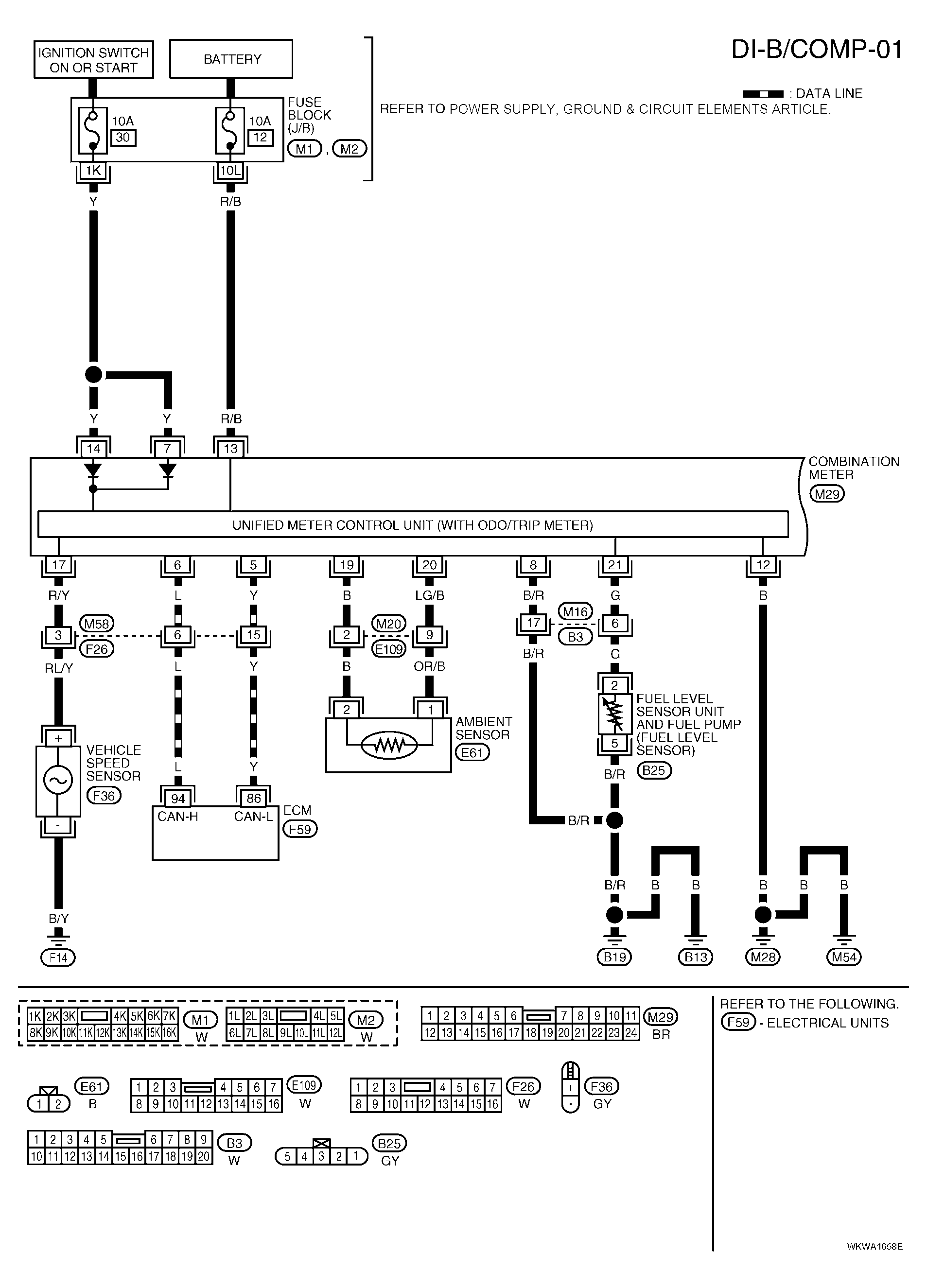

Fig 1: DI-B/COMP-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
