Removal and Installation: Notes

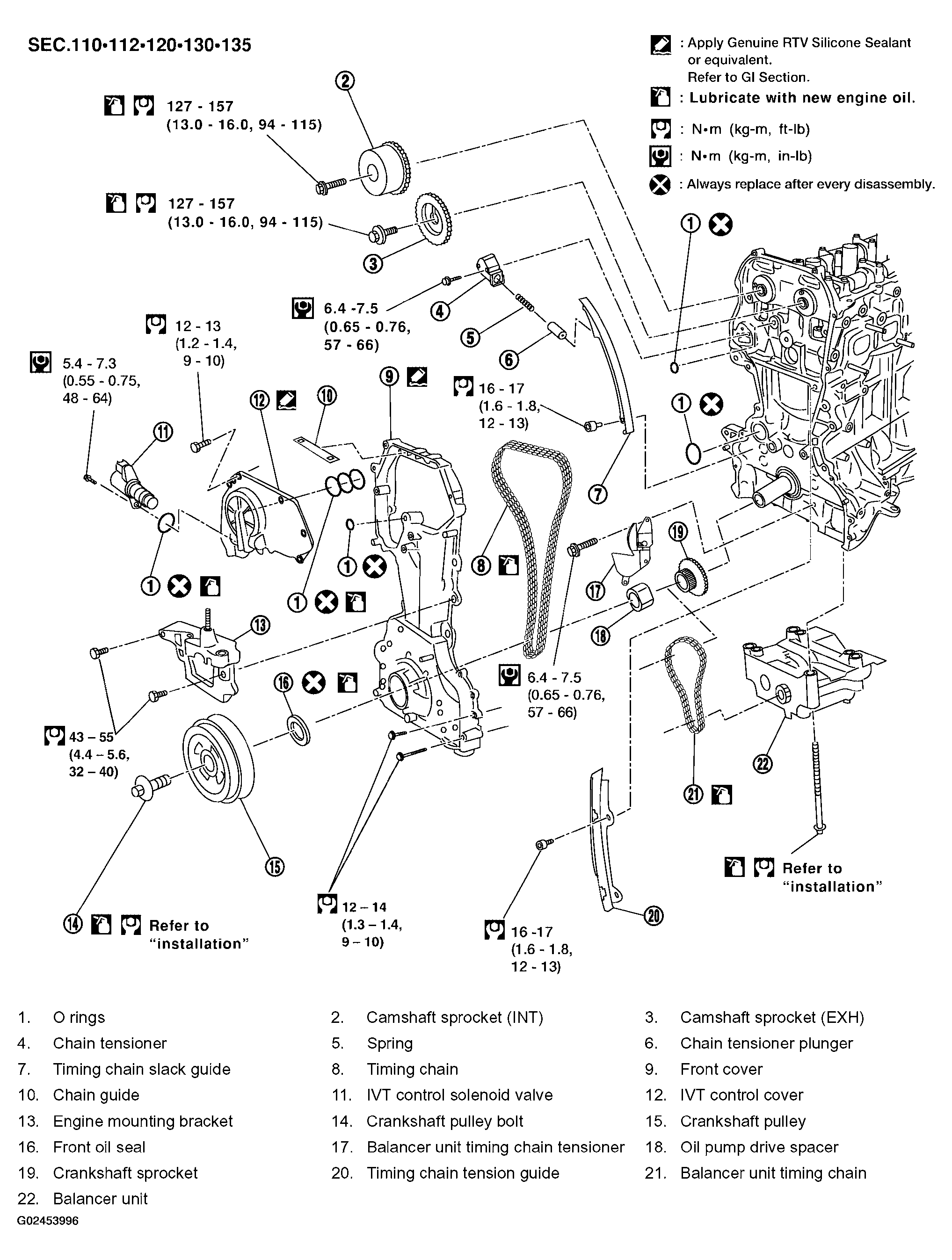

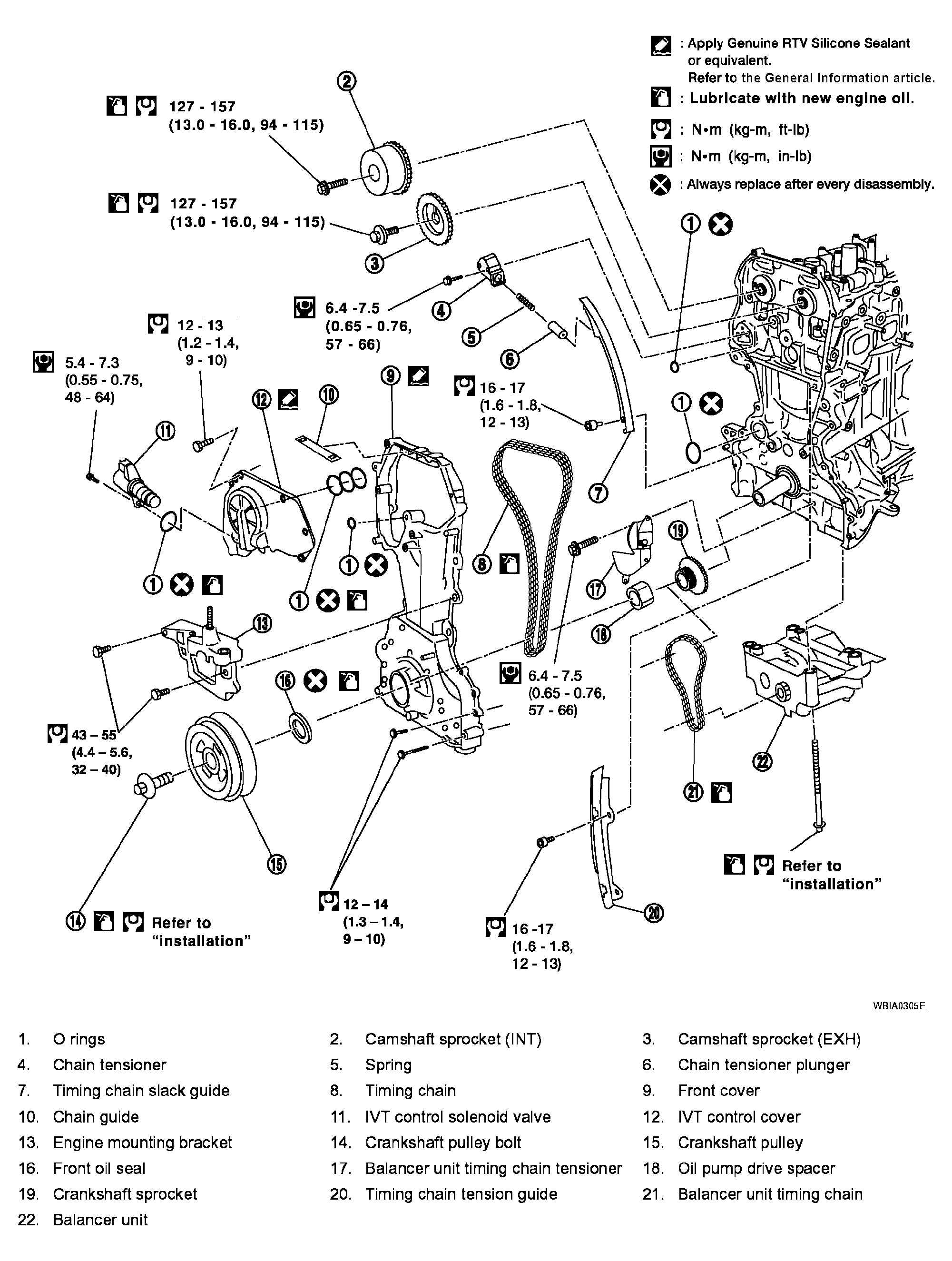

Fig 1: Exploded View Of Timing Chain With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Apply new engine oil to parts marked in illustration before installation.
