ASCD Indicator: Wiring Diagram

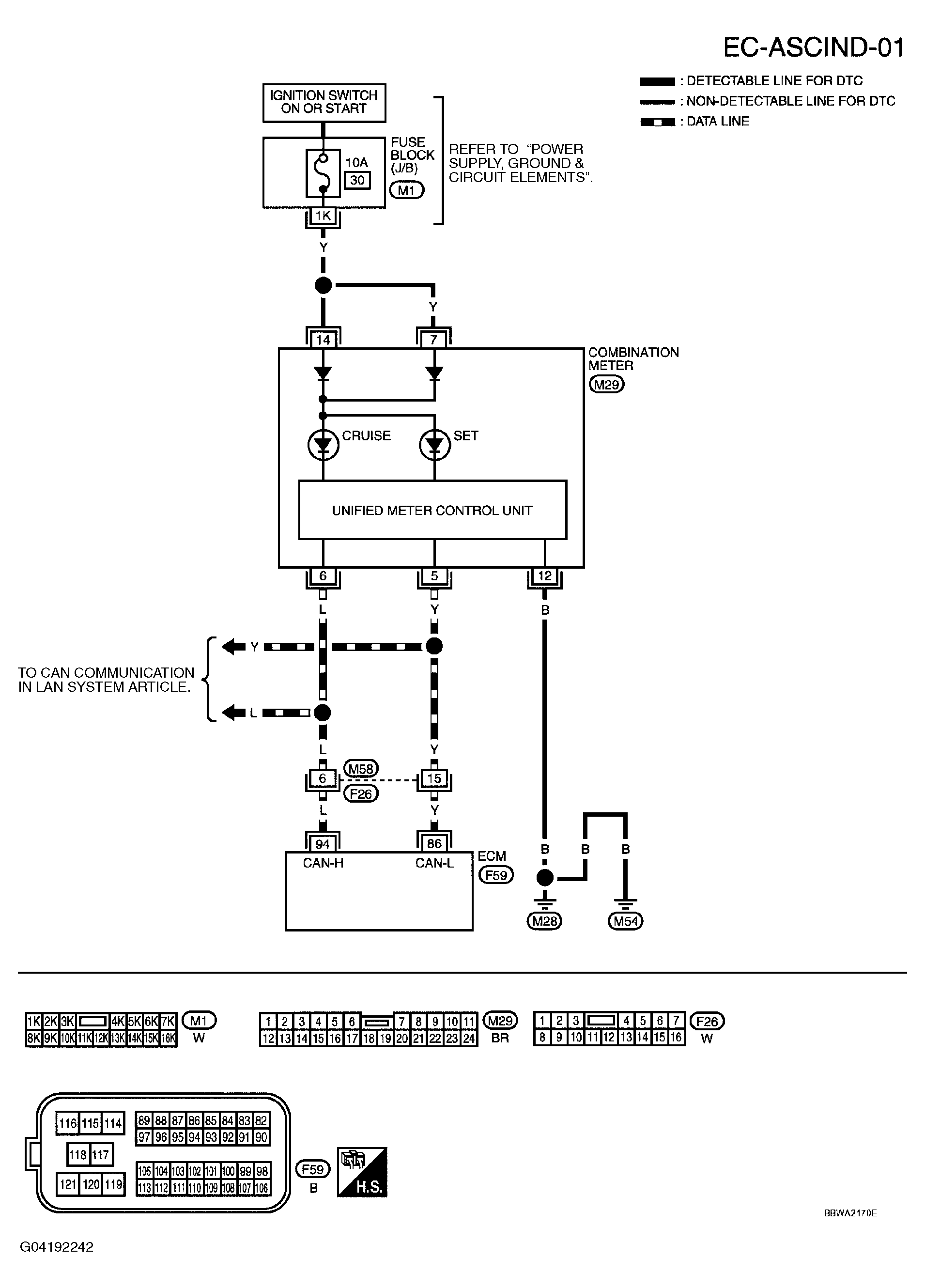

Fig 1: Identifying Wiring Diagram (EC-ASCIND-01)
G04192242Courtesy of NISSAN MOTOR CO., U.S.A.
