DTC P0181 FTT Sensor: Wiring Diagram

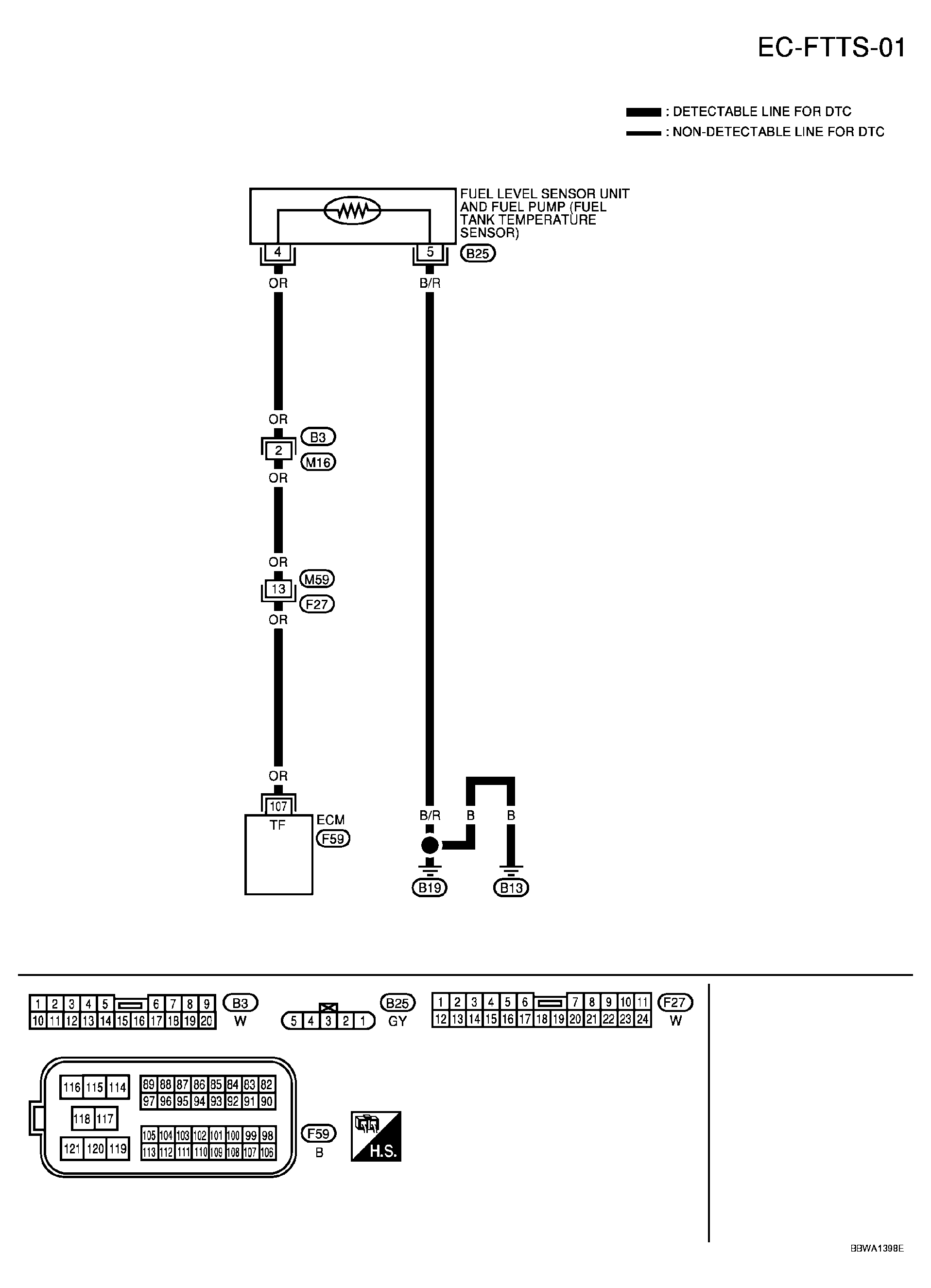

Fig 1: Identifying Wiring Diagram (EC-FTTS-01)
G04191875Courtesy of NISSAN MOTOR CO., U.S.A.
