Engine Control System - Introduction (Qr25DE)
›
Basic Service Procedure
›
Idle Speed and Ignition Timing Check
›
Ignition Timing
›
Method B
Method B

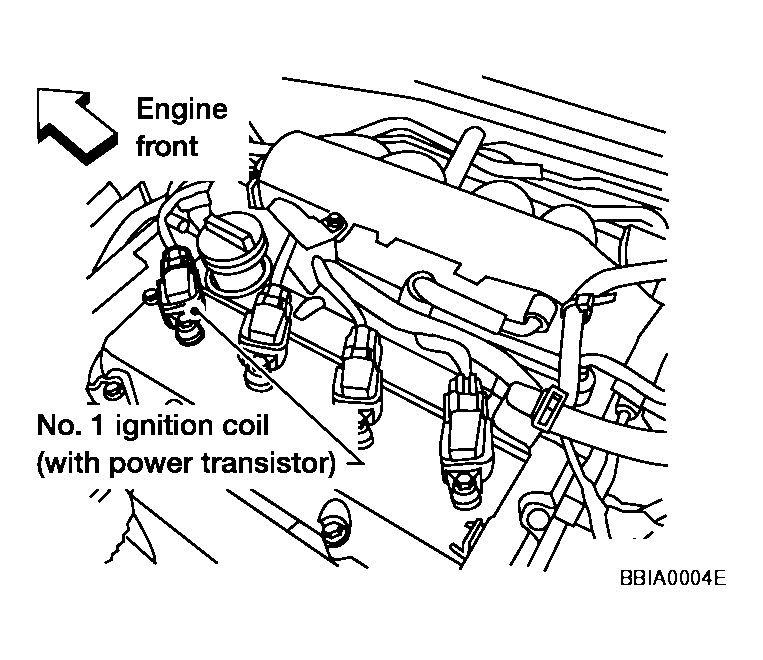

Remove No. 1 ignition coil.
Fig 1: Removing Ignition Coil No. 1
Courtesy of NISSAN MOTOR CO., U.S.A.

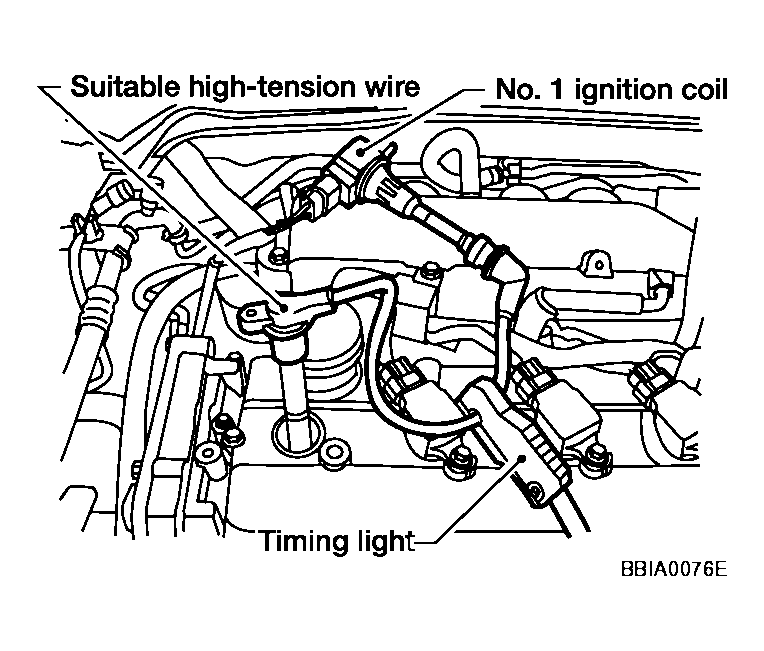

Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
Fig 2: Connecting Ignition Coil And Spark Plug With Suitable High-Tension Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

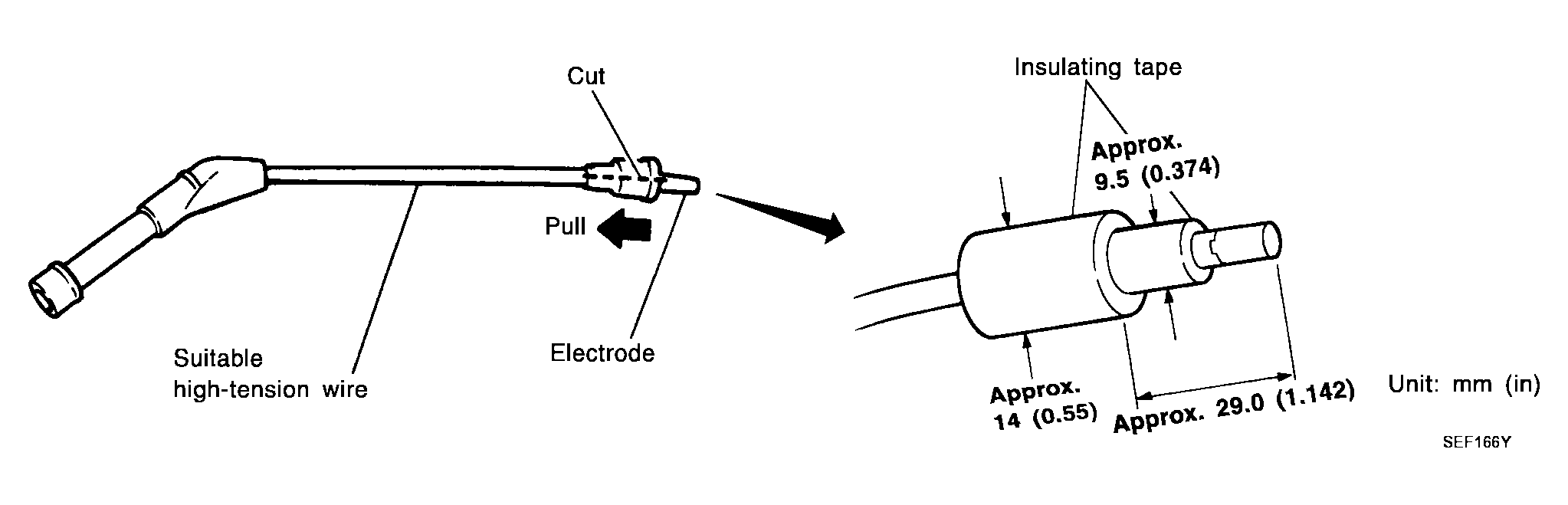

Fig 3: Identifying High-Tension Wire On Ignition Coil & Spark Plug
Courtesy of NISSAN MOTOR CO., U.S.A.

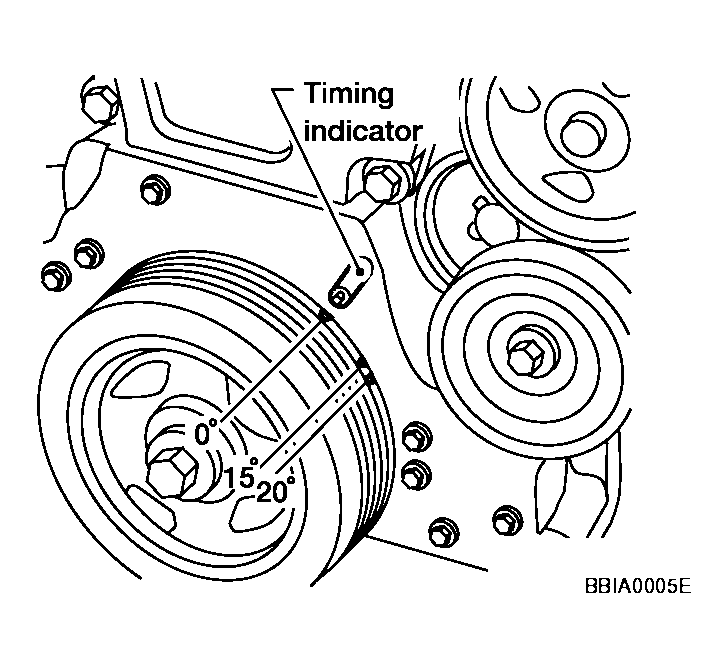

Check ignition timing.
Fig 4: Checking Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
