Support Bearing

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Install bearing into retainer.

Fig 1: Installing Bearing Into Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install dust shield.
Install snap ring.
Press drive shaft into bearing.

Fig 2: Pressing Drive Shaft Into Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring.
Install new dust shield.

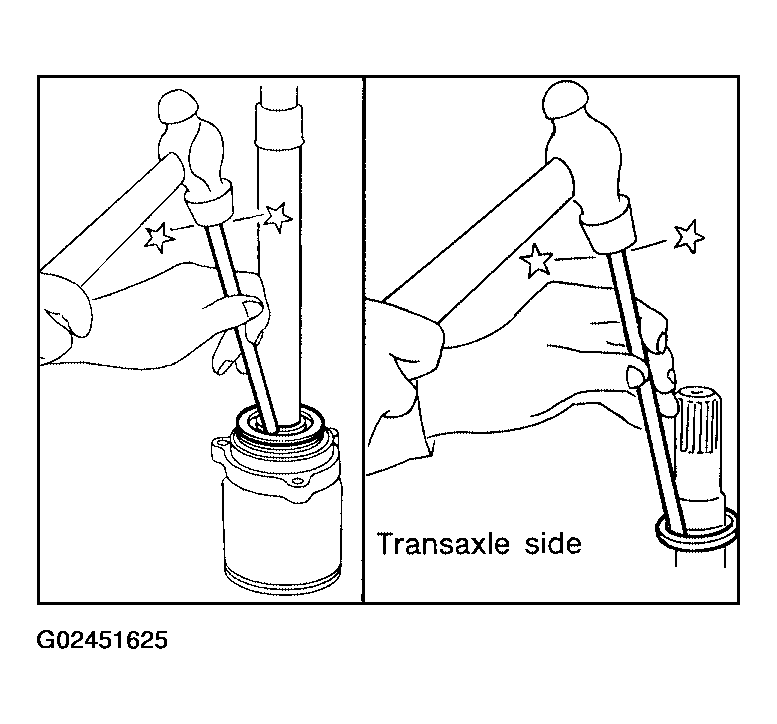

Fig 3: Installing Dust Shield
Courtesy of NISSAN MOTOR CO., U.S.A.
