Drive Shaft: Components

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Circular clips should be properly meshed with differential side gear (transaxle side) and with joint assembly (wheel side). Make sure they will not come out.
Be careful not to damage boots. Use suitable protector or cloth during removal and installation.

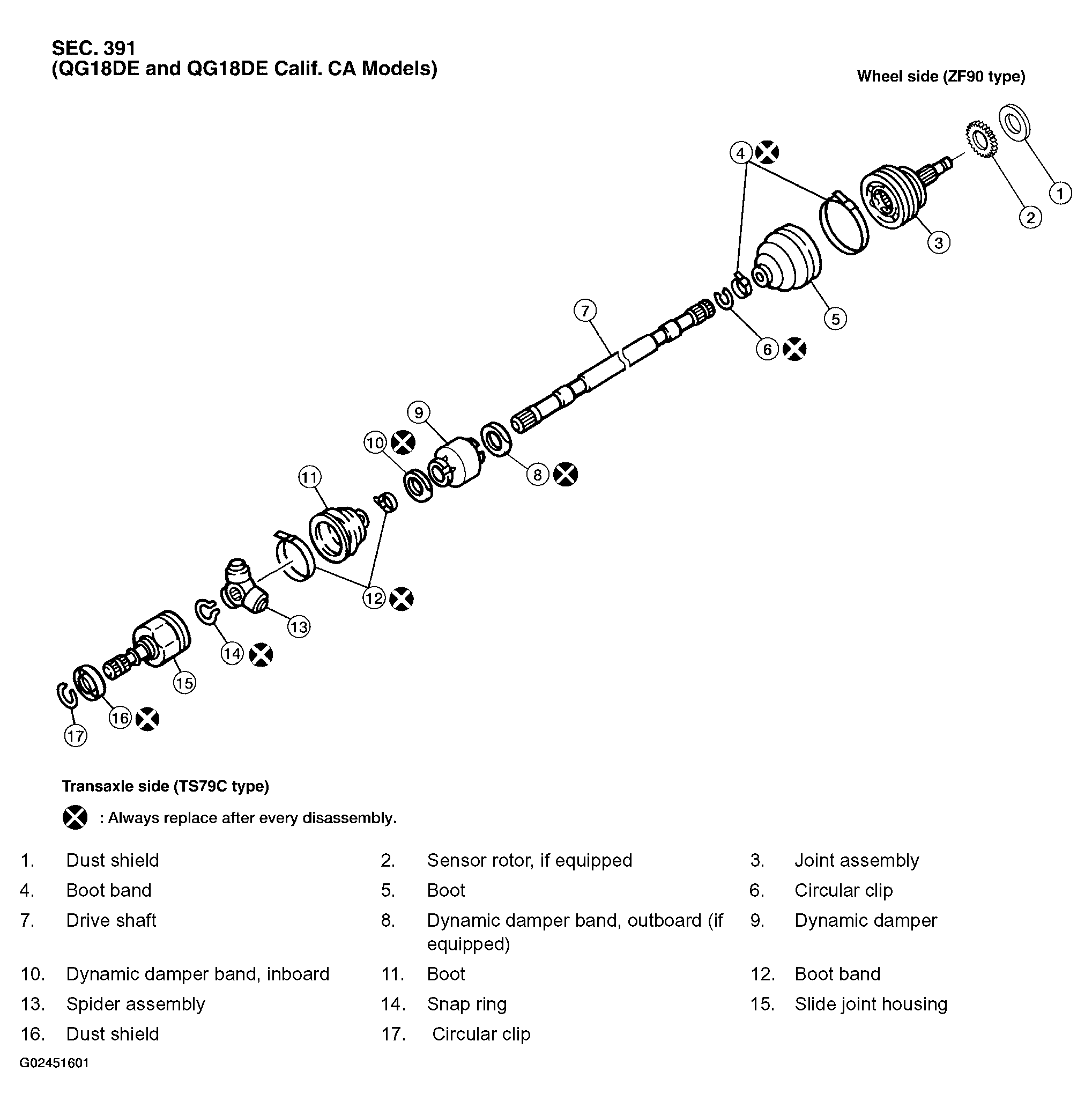

Fig 1: Identifying Drive Shaft Components (QG18De & QG18GE Calif. Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

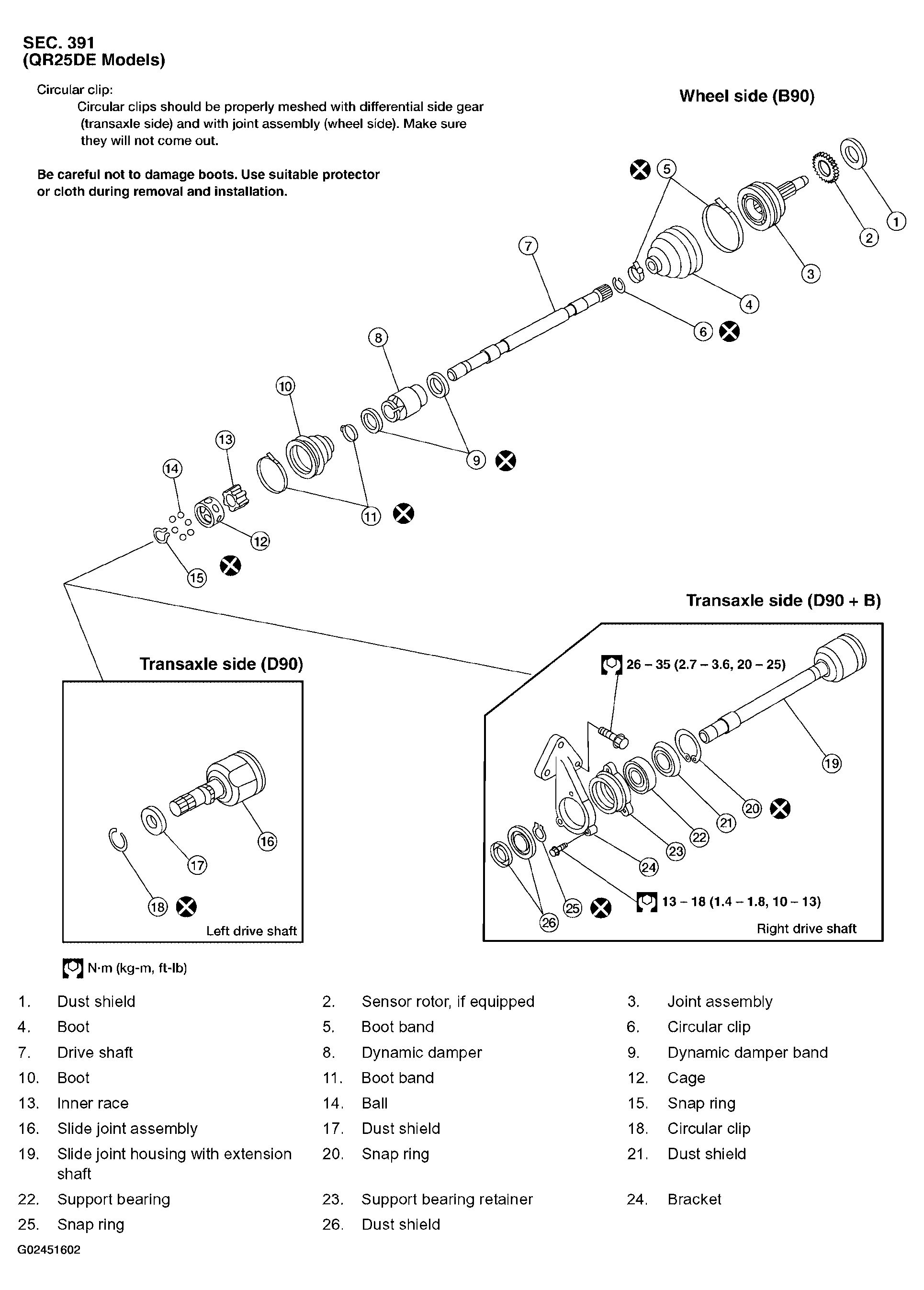

Fig 2: Drive Shaft Replacement Components (QR25DE Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

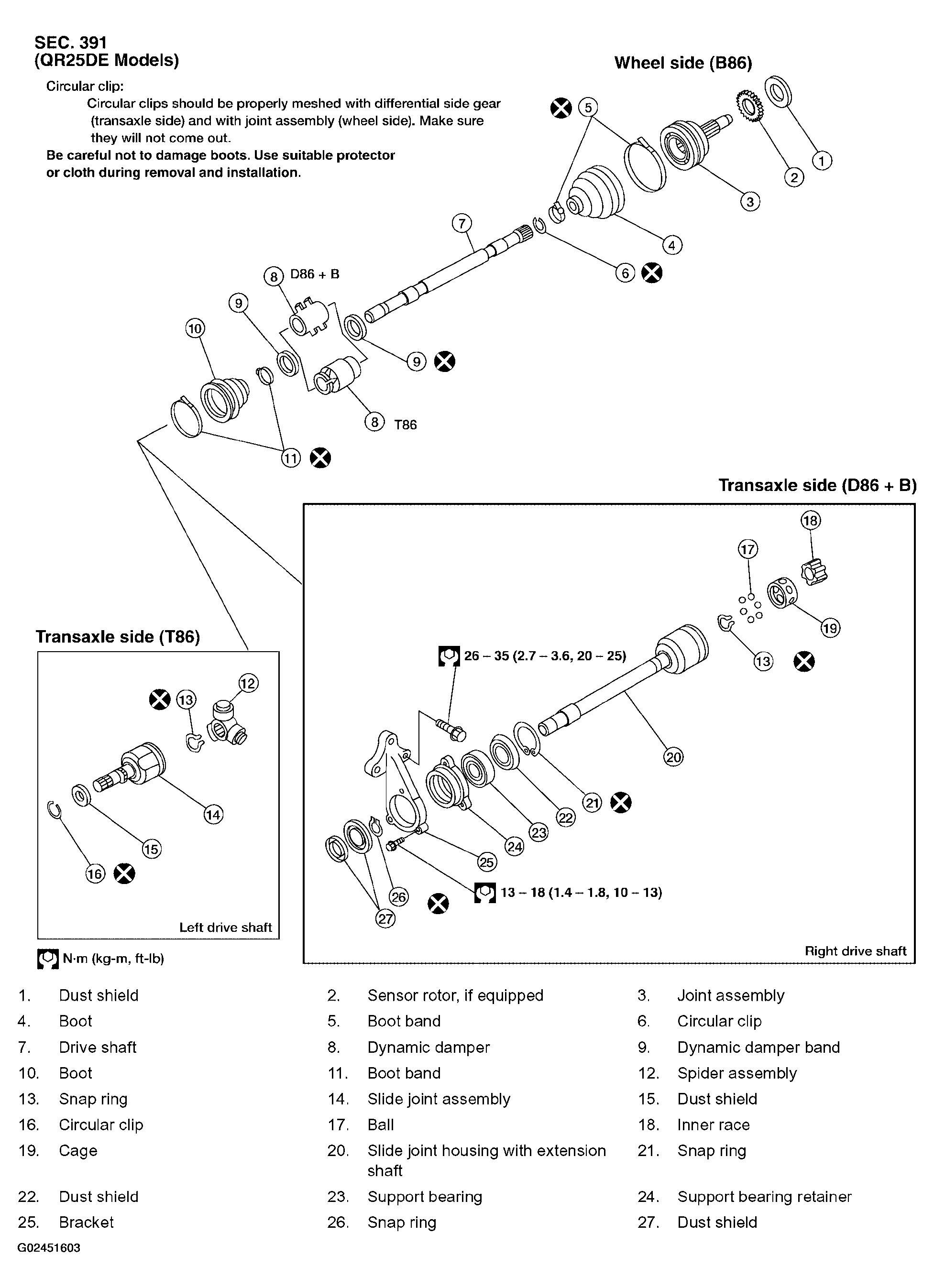

Fig 3: Drive Shaft Replacement Components (QR25DE Models) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
