Support Bearing

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

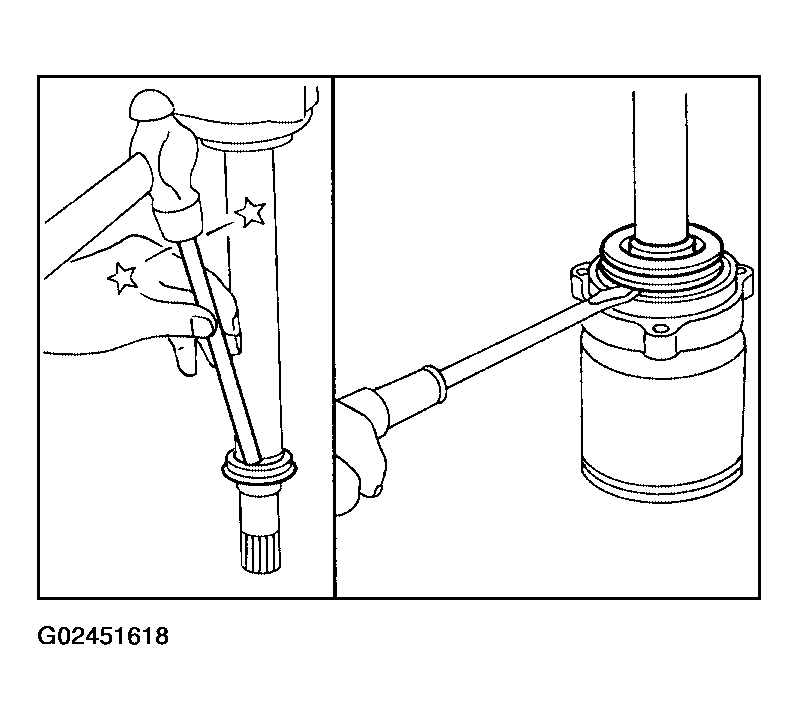

Remove dust shield.

Fig 1: Removing Dust Shield
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring.

Fig 2: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Press support bearing assembly off drive shaft.

Fig 3: Pressing Support Bearing Assembly Off Drive Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring.
Remove dust shield.
Separate support bearing from retainer.

Fig 4: Separating Support Bearing From Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
