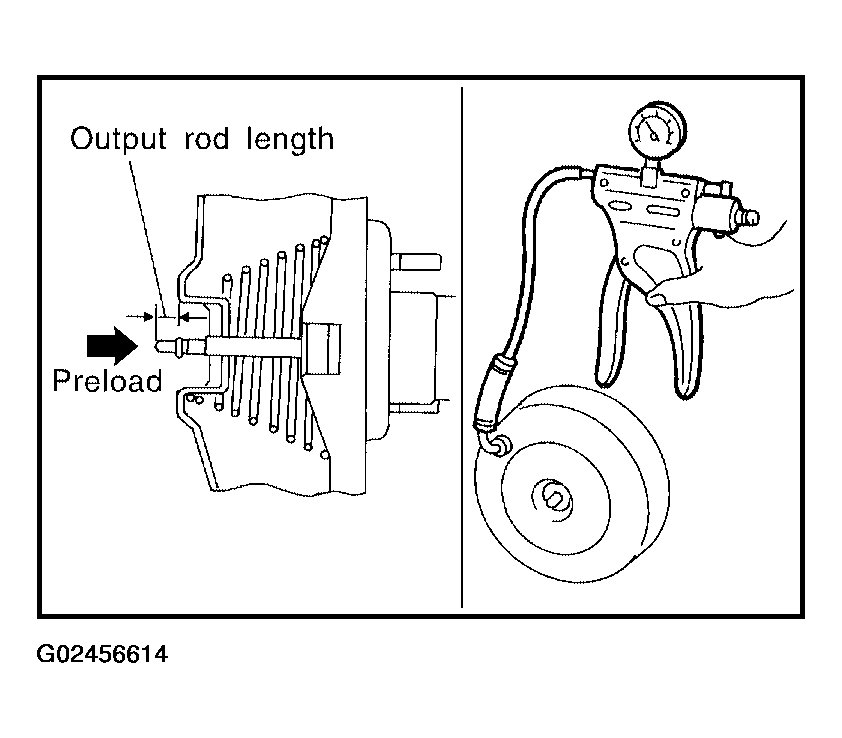

Output Rod Length Check
WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- Apply vacuum of -66.7 kPa (-500 mmHg, -19.69 inHg) to brake booster with a hand vacuum pump.
- Add preload of 19.6 N (2 kg, 4.4 lb) to output rod.
- Check output rod length.
- Specified length: 10.275 - 10.525 mm (0.4045 - 0.4144 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
