Master Cylinder: Assembly

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Insert secondary piston assembly. Then insert primary piston assembly.
- Lubricate with brake fluid.
- Pay attention to alignment of secondary piston slit with valve stopper mounting hole of cylinder body (with ABS).
Fig 1: Identifying Primary & Secondary Piston Assembly (Models Without ABS)
Courtesy of NISSAN MOTOR CO., U.S.A.

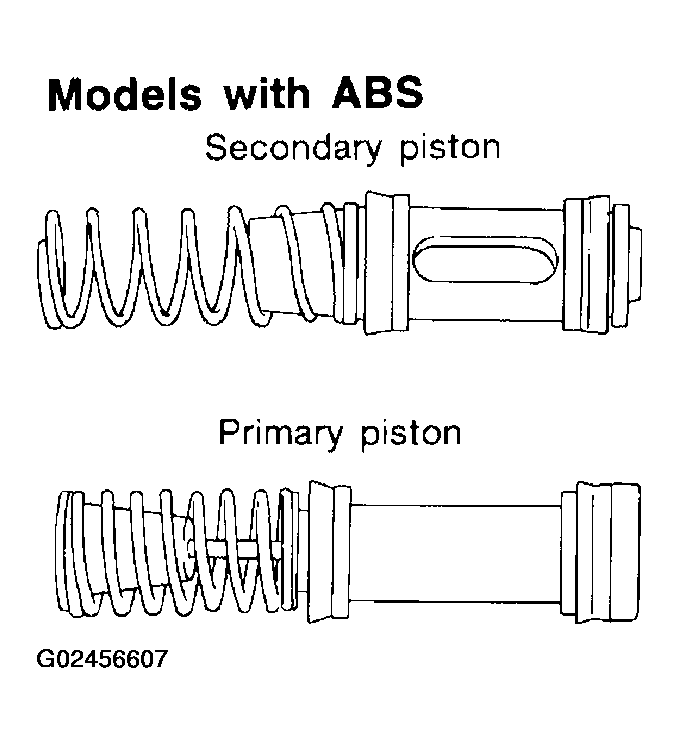

Fig 2: Identifying Primary & Secondary Piston Assembly (Models With ABS)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install piston stopper pin while piston is pushed into cylinder (with ABS).
Push reservoir tank seals and reservoir tank into cylinder body.
- Lubricate with brake fluid.
Install spring pin (with ABS).

Fig 3: Installing Piston Stopper Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Install stopper cap.

Fig 4: Installing Stopper Cap
Courtesy of NISSAN MOTOR CO., U.S.A.
- Before installing stopper cap, ensure that claws are bent inward.
