Pad Replacement

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Clean brake pads with a vacuum dust collector to minimize the hazard of airborne particles or other materials.
CAUTION:
  • When cylinder body is open, do not depress brake pedal because piston will pop out.
  • Be careful not to damage piston boot or get oil on rotor. Always replace shims in replacing pads.
  • If shims are rusted or show peeling of rubber coat, replace them with new shims.
  • It is not necessary to remove connecting bolt except for disassembly or replacement of caliper assembly. In this case, suspend cylinder body with wire so as not to stretch brake hose.
  • Burnish the brake contact surfaces after refinishing or replacing drums or rotors, after replacing pads or linings, or if a soft pedal occurs at very low mileage.

    Refer to BRAKE BURNISHING PROCEDURE .

  1. Remove master cylinder reservoir cap.
  2. Remove wheel and tire. Refer to TIRE ROTATION .
  3. Remove brake cable mounting bolt and lock spring.
    Fig 1: Removing Rear Brake Cable Mounting Bolt & Lock Spring
    G02456646Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Release parking brake control lever, then disconnect cable from the caliper.
  5. Remove upper pin bolt.
  6. Open cylinder body downward and secure with wire as shown in Fig 2. Then remove pad retainers, and inner and outer shims.
    • Standard pad thickness: 10 mm (0.39 in)
    • Pad wear limit: 2.0 mm (0.079 in)

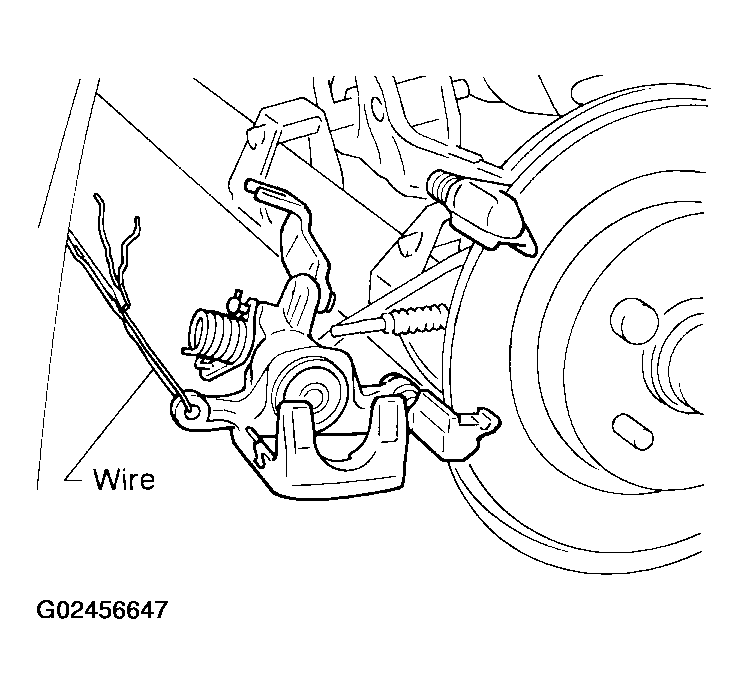

    Fig 2: Opening Rear Cylinder Body Downward & Securing With Wire
    G02456647Courtesy of NISSAN MOTOR CO., U.S.A.
  7. When installing new pads, push piston into cylinder body by gently turning piston clockwise using suitable commercial service tool or long nose pliers, as shown in Fig 3 and Fig 4.
    NOTE: Carefully monitor brake fluid level because brake fluid will return to reservoir when pushing back piston.
    Fig 3: Pushing Piston Into Rear Cylinder Body Using Long Nose Pliers
    G02456648Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 4: Pushing Piston Into Rear Cylinder Body Using Suitable Commercial Service Tool
    G02456649Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Adjust the piston to the right angle as shown in Fig 5.

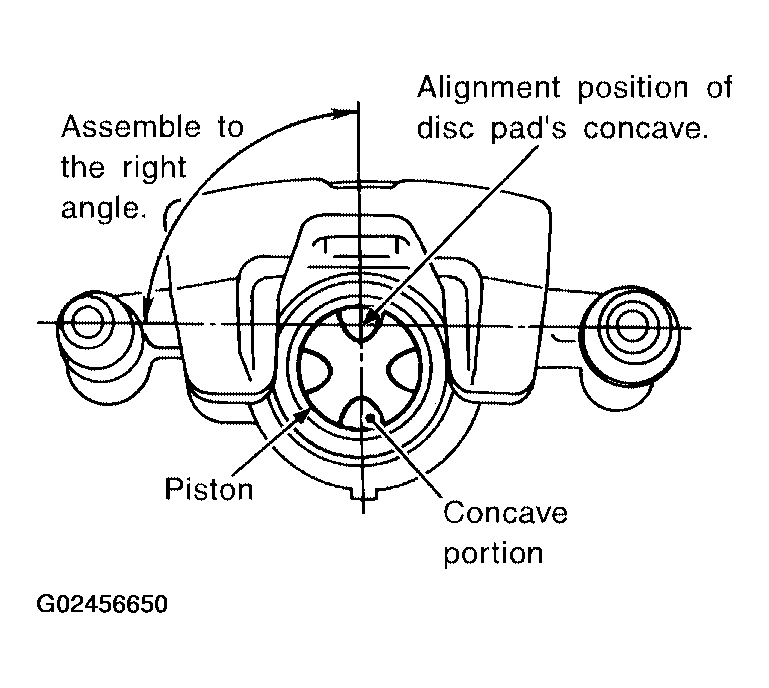

    Fig 5: Adjusting Rear Caliper Piston To Correct Angle
    G02456650Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install caliper assembly.
    • As shown in Fig 6, align the piston's concave to the pad's convex, then install the cylinder body to the torque member.

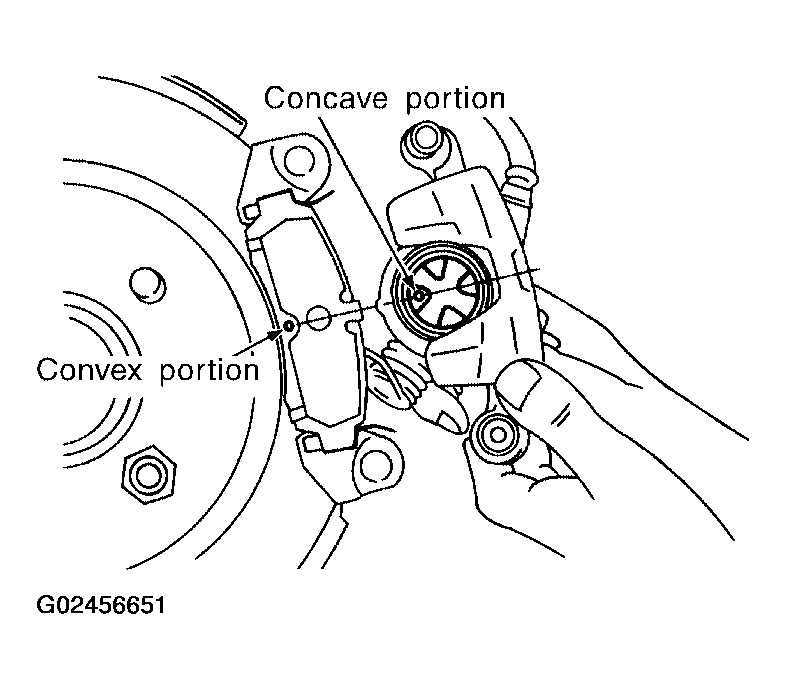

    Fig 6: Aligning Rear Caliper Piston's Concave To Pad's Convex
    G02456651Courtesy of NISSAN MOTOR CO., U.S.A.
