Section 25 (Lighting System)
›
Combination Switch
›
Check
Combination Switch: Check
WARNING:
This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

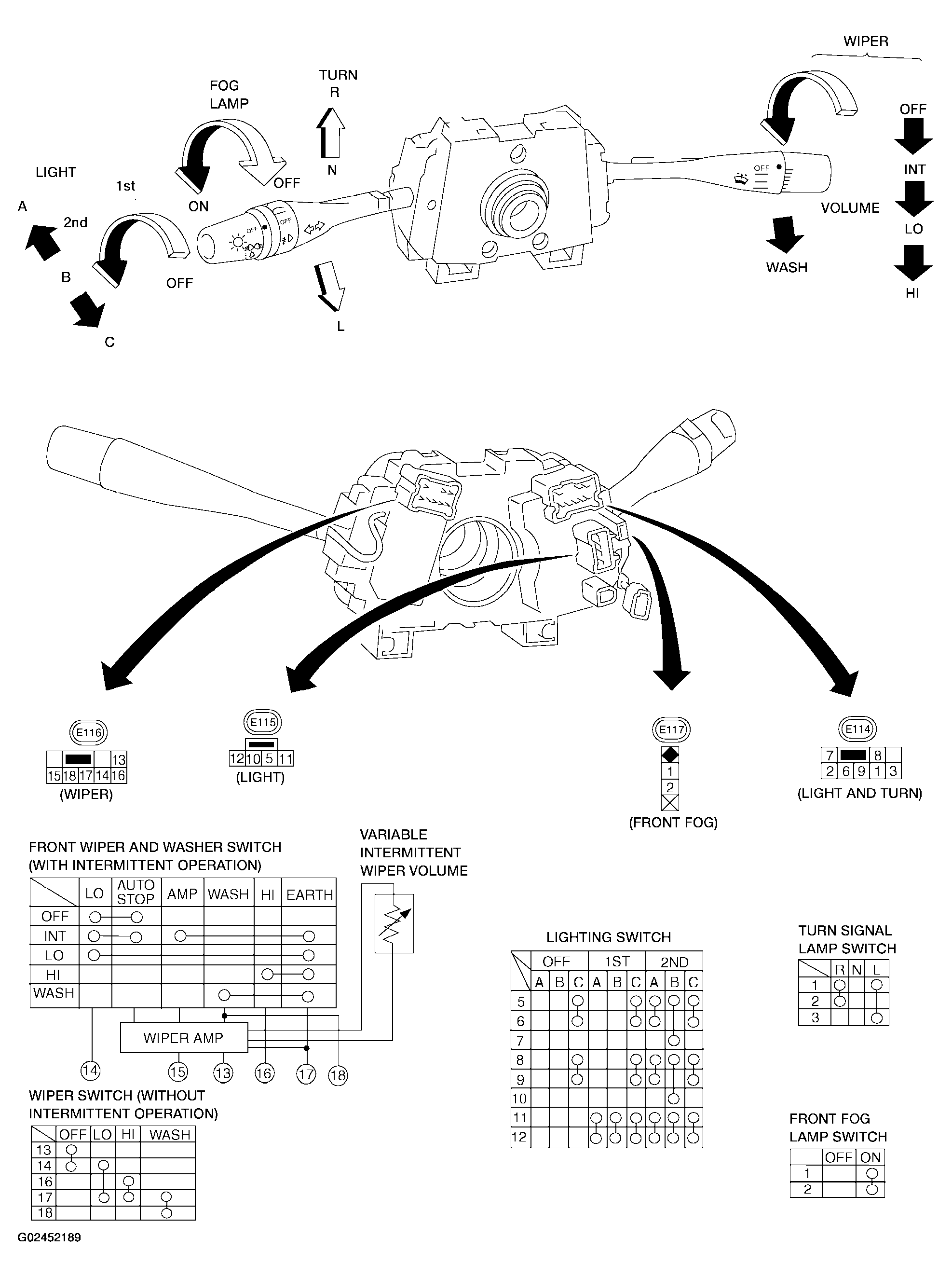

Fig 1: Checking Combination Switch Component
Courtesy of NISSAN MOTOR CO., U.S.A.
