Section 6 (Automatic Transmission - Introduction (Re4F03B))
›
Re4F03B
›
Overall System
›
Cross-sectional View
Cross-sectional View
WARNING:
This page is about a different variant/trim than selected.

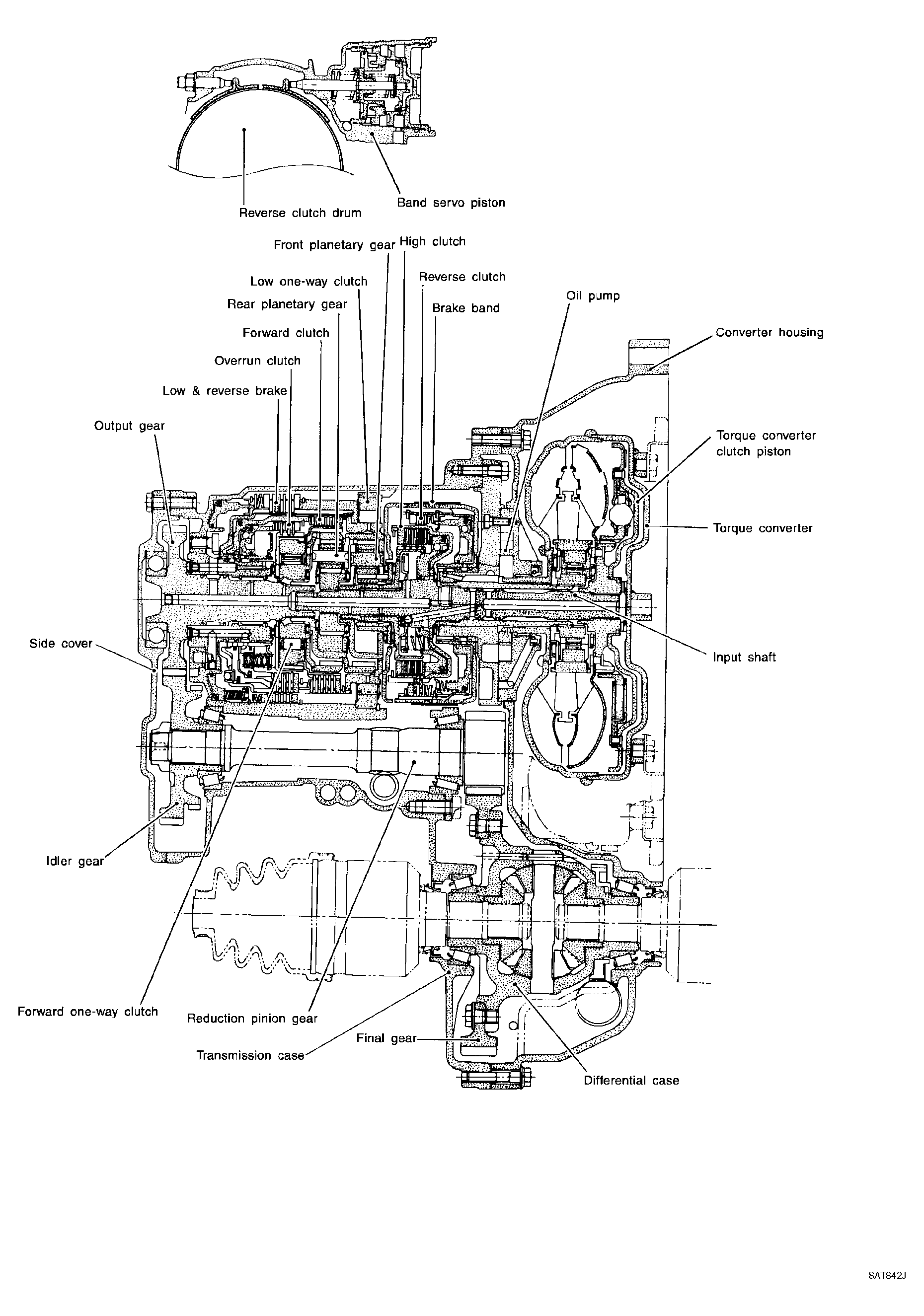

Fig 1: Identifying Automatic Transmission - Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
