Work Flow Chart

WARNING: This page is about a different variant/trim than selected.

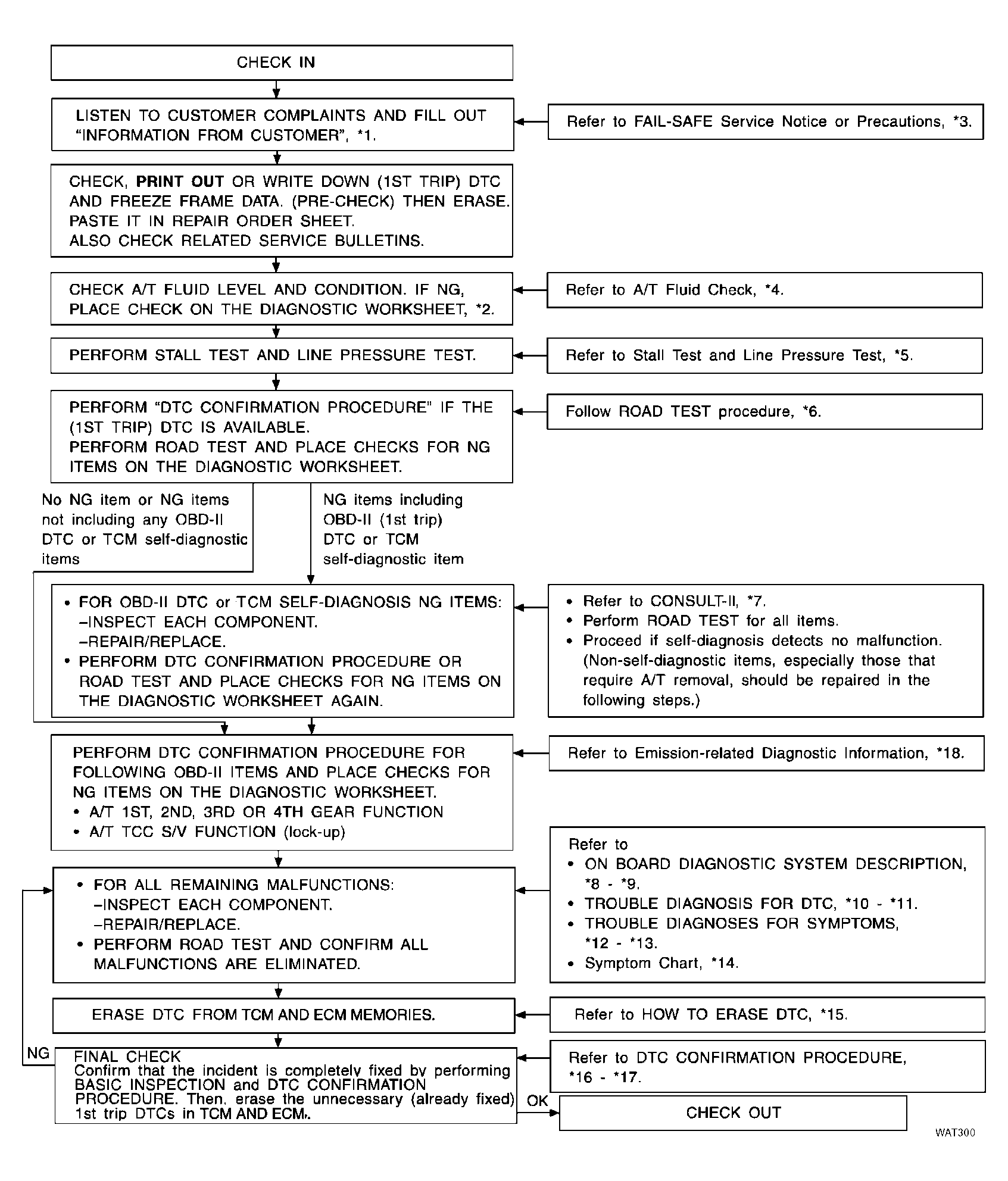

Fig 1: Work Flow Chart
G04192885Courtesy of NISSAN MOTOR CO., U.S.A.
WORK FLOW CHART REFERENCES

*1. INFORMATION FROM CUSTOMER
*2. DIAGNOSTIC WORKSHEET
*3. FAIL-SAFE
*4. A/T Fluid Check
*5. Stall Test , Line Pressure Test
*6. Road Test
*7. CONSULT-II
*8. Introduction
*9. Judgement of Self-diagnosis Code
*10. Description
*11. Description
*12. 1. O/D OFF Indicator Lamp Does Not Come On
*13. 21. TCM Self-diagnosis Does Not Activate {Park/neutral Position (PNP), Overdrive Control and Throttle Position Sensor [Accelerator Pedal Position (APP) Sensor] Switches Circuit Checks}
*14. Symptom Chart
*15. HOW TO ERASE DTC
*16. DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
*17. DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
*18. EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
