Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

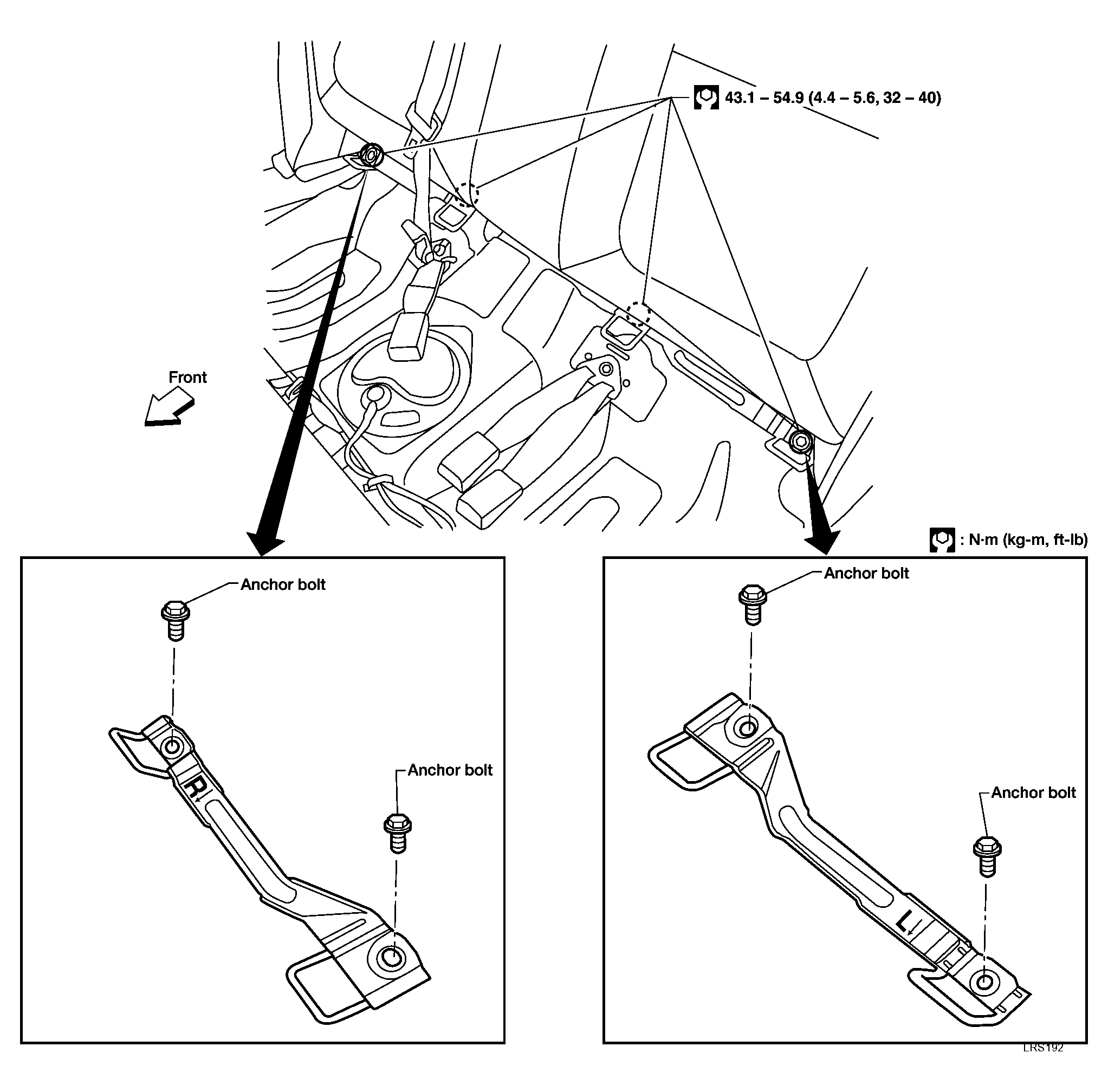

Fig 1: Removing LATCH System Anchors With Torque Specifications

G04194806

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove rear seat cushion. Refer to "REAR SEAT " for details.
Remove LH and RH LATCH System anchors.
NOTE: LH and RH LATCH System anchors are different.
Install with arrow facing forward.
