Power Steering Gear And Linkage: Components

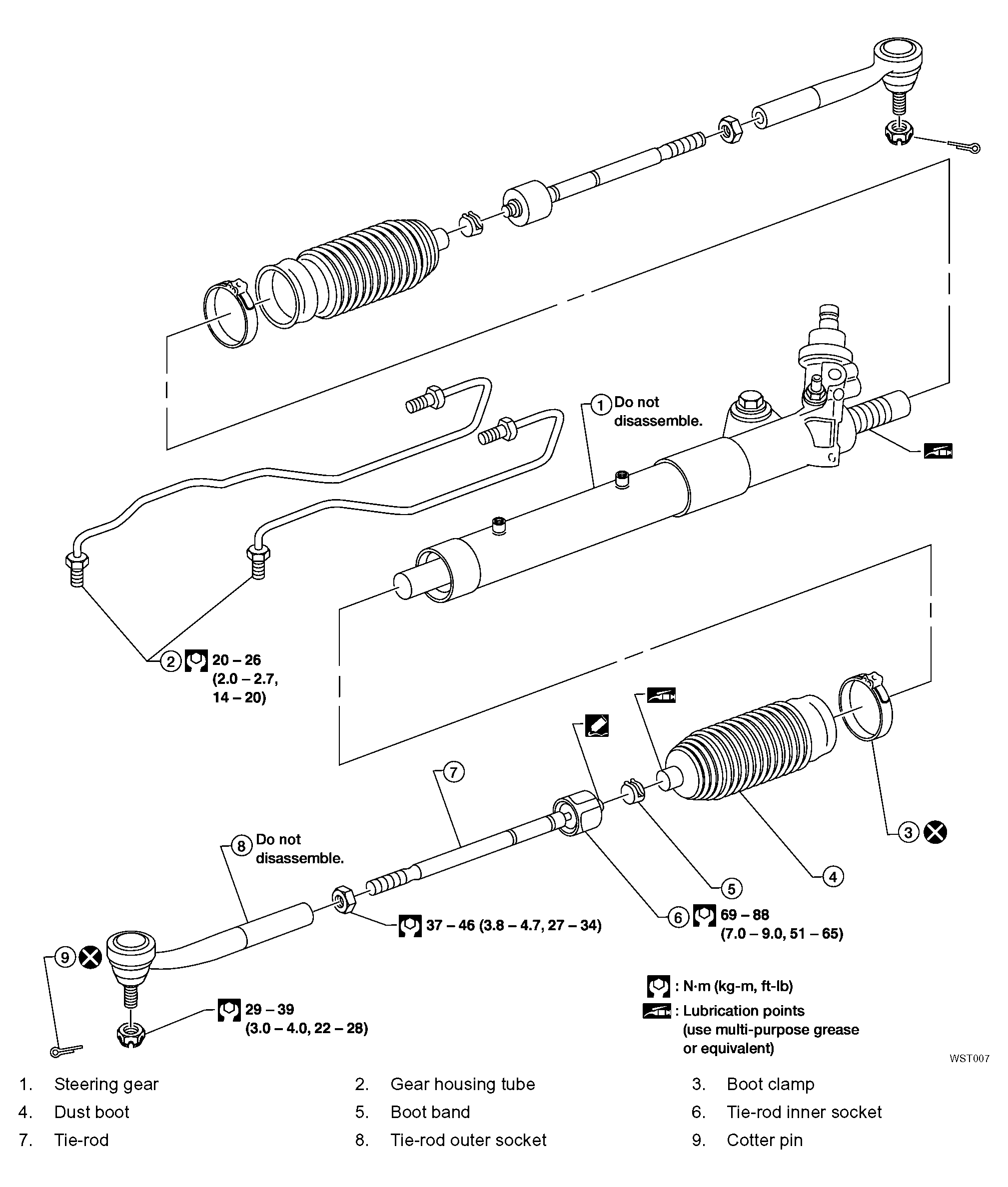

Fig 1: Exploded View Of Power Steering Gear With Torque Specifications
G04194772Courtesy of NISSAN MOTOR CO., U.S.A.
