Coil Spring And Shock Absorber: Assembly

• Locate upper spring seat as shown.
  Fig 1: Locating Upper Spring Seat

  Courtesy of NISSAN MOTOR CO., U.S.A.
• When installing coil spring, be careful not to reverse top and bottom direction. (Top end is flat.)

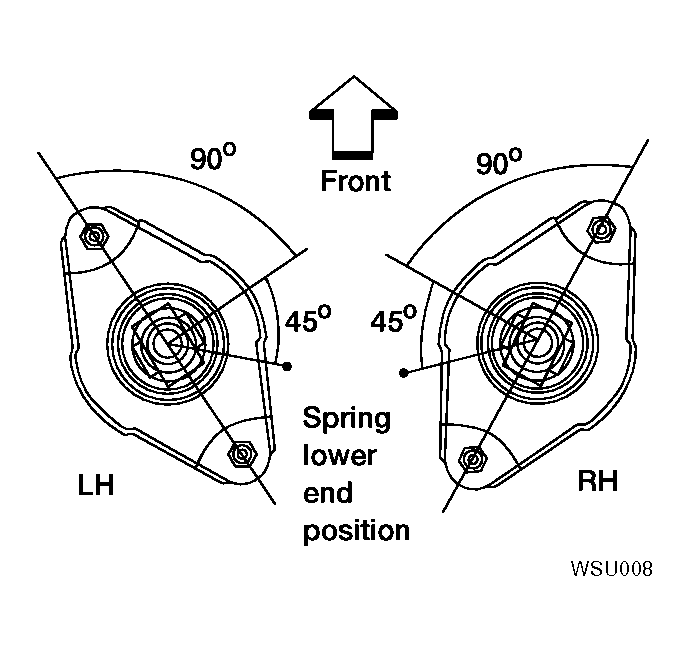

• When installing coil spring on shock absorber, it must be positioned as shown.
  CAUTION: Do not reuse piston rod lock nut.

Fig 2: Installing Coil Spring

Courtesy of NISSAN MOTOR CO., U.S.A.
