Removal and Installation

Remove shock absorber fixing bolt and nut (to hood ledge).
Do not remove piston rod lock nut on vehicle.

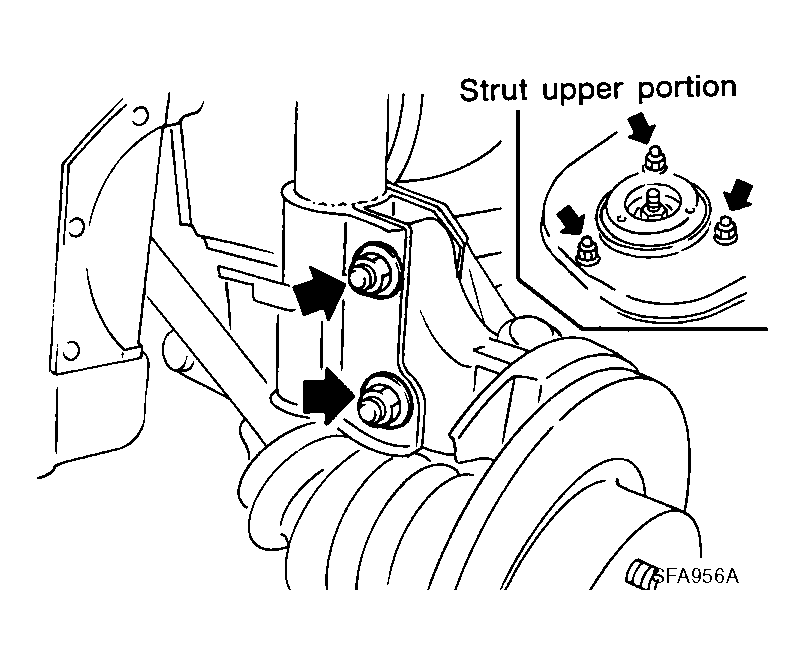

Fig 1: Locating Shock Absorber Fixing Bolt And Nut
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing strut spacer, it must be positioned as shown.

Fig 2: Positioning For Installing Strut Spacer
Courtesy of NISSAN MOTOR CO., U.S.A.
