Home › Nissan-Datsun › 2006 › Sentra SE-R › Repair and Diagnosis › Suspension › Wheel Alignment › Rear Suspension System › Rear Suspension Assembly › Components

Rear Suspension Assembly: Components

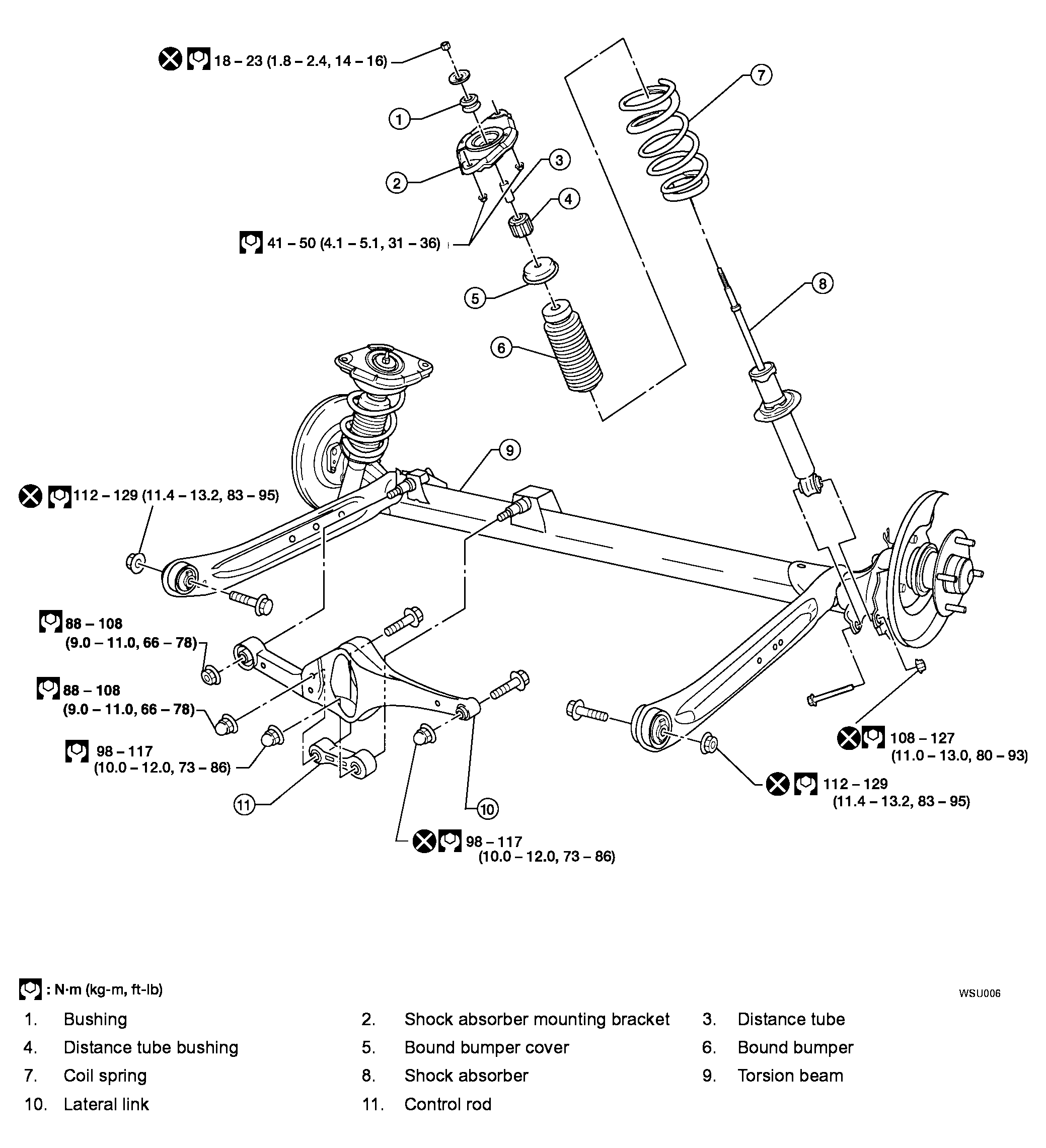

Fig 1: Exploded View Of Rear Suspension Assembly With Torque Specifications
G04194532Courtesy of NISSAN MOTOR CO., U.S.A.
