Torsion Beam, Lateral Link And Control Rod: Assembly

Temporarily assemble lateral link and control rod.
- When installing the control rod, connect the bushing with the smaller inner diameter to the lateral link.

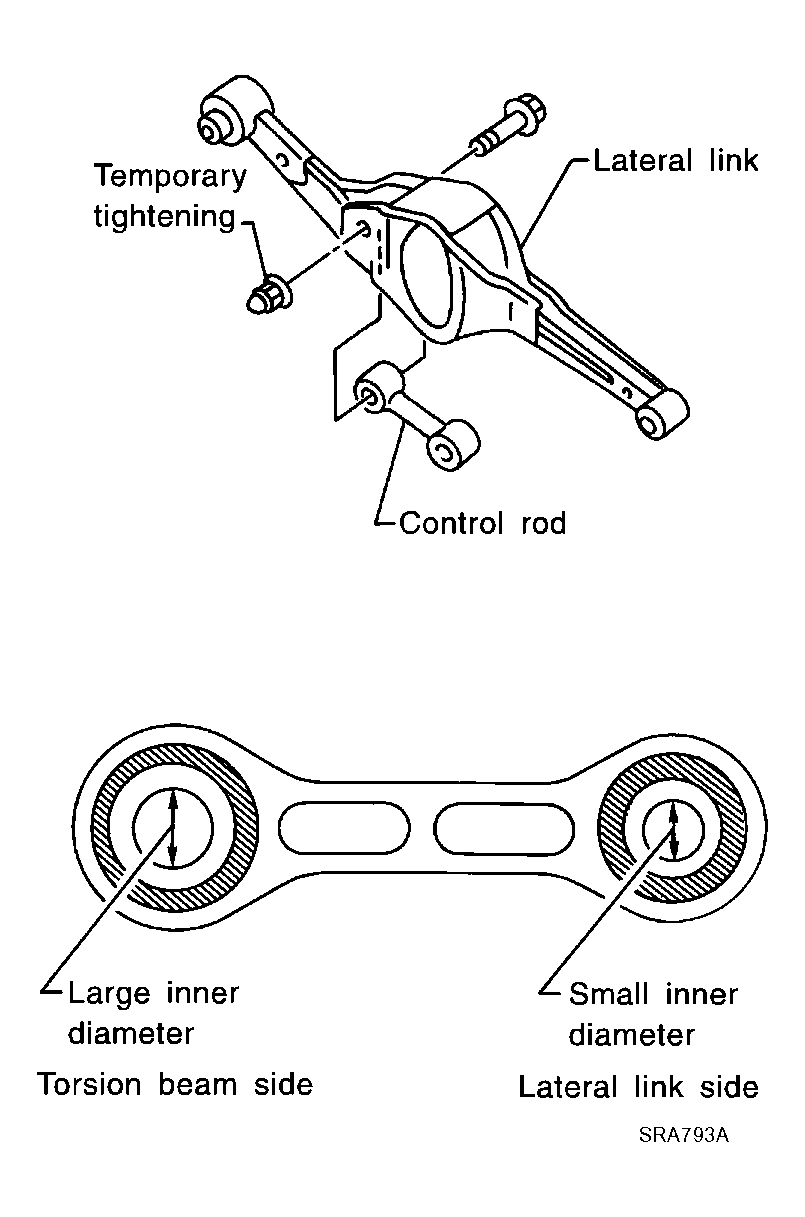

Fig 1: Assembling Lateral Link And Control Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Temporarily install lateral link and control rod on torsion beam.
- When installing, place lateral link with the arrow topside.
Place lateral link and control rod horizontally against torsion beam, and tighten to the specified torque.

Fig 2: Installing Lateral Link And Control Rod On Torsion Beam
Courtesy of NISSAN MOTOR CO., U.S.A.
Install torsion beam assembly. Refer to "INSTALLATION .

Fig 3: Identifying Secure Tightening
Courtesy of NISSAN MOTOR CO., U.S.A.
