Automatic Transmission - Component Testing, Removal And Installation And Overhaul (Re4F04B)
›
Repair For Component Parts
›
Control Valve Lower Body
›
Components
Control Valve Lower Body: Components
Apply ATF to all components before installation
.

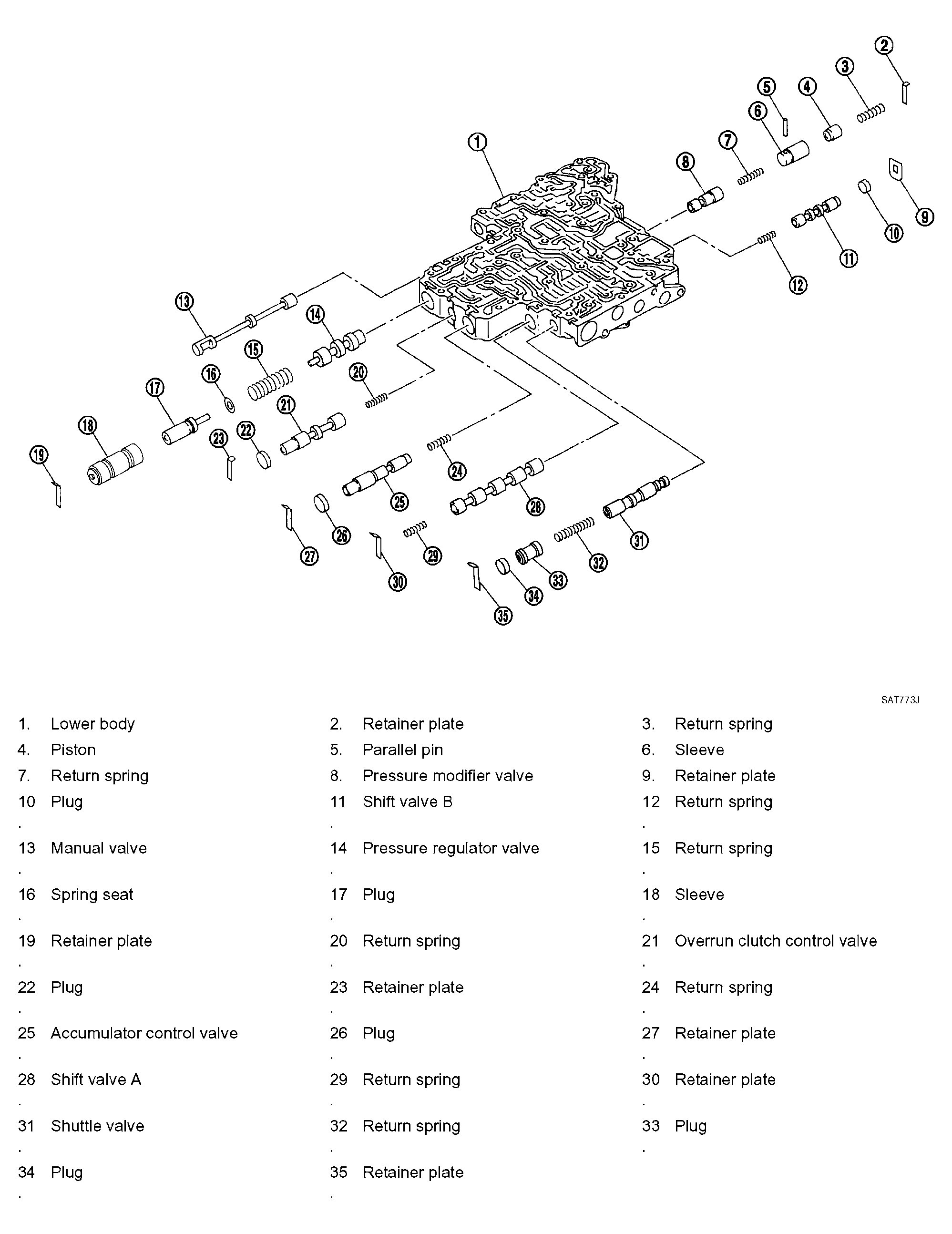

Fig 1: Exploded View Of Control Valve Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
