Control Valve Upper Body: Components
Apply ATF to all components before installation
.

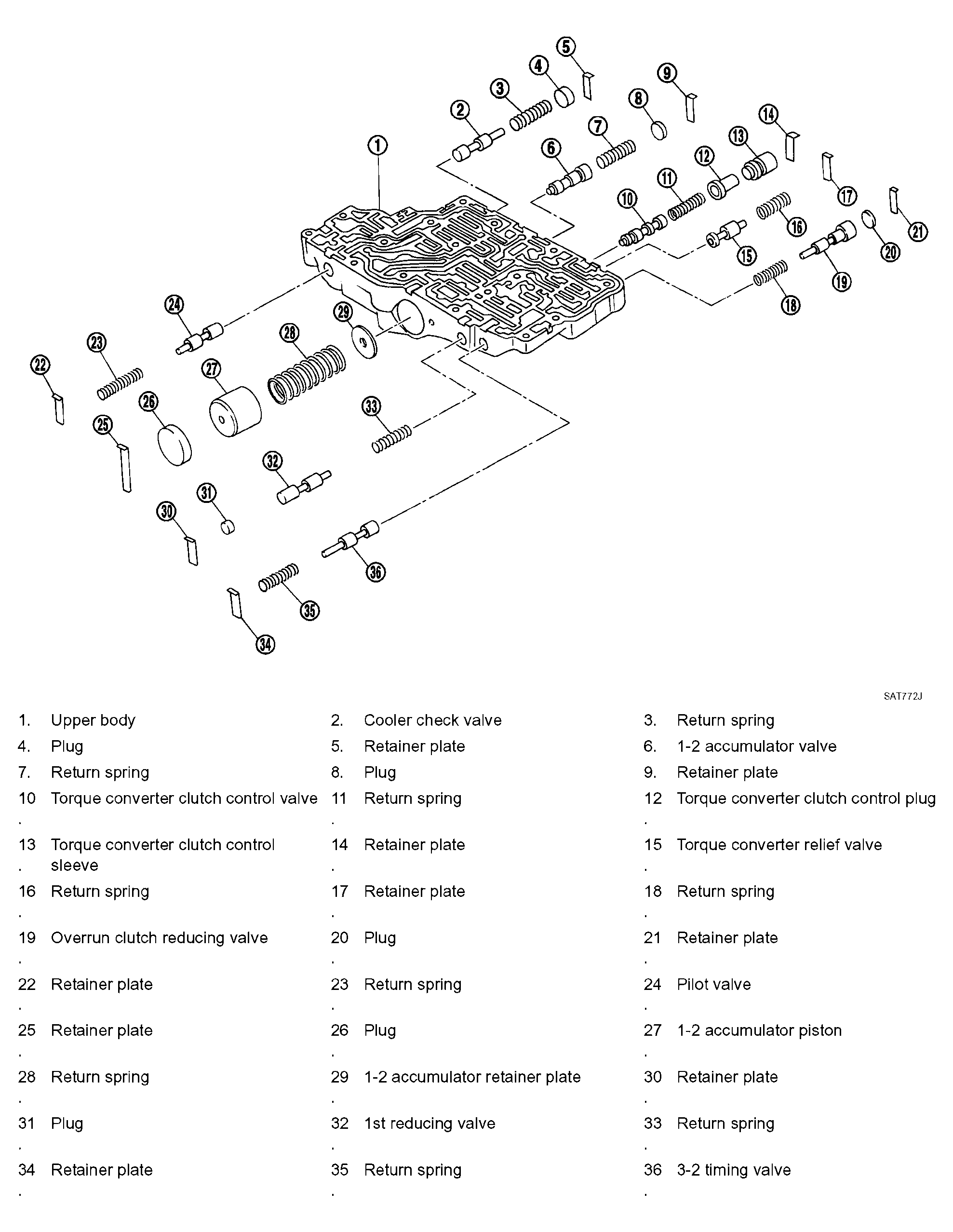

Fig 1: Exploded View Of Control Valve Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
