Line Pressure Test Procedure

Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
Drive vehicle for approx. 10 minutes or until fluid and oil reach operating temperature.
ATF operating temperature :50 - 80°C (122 - 176°F)

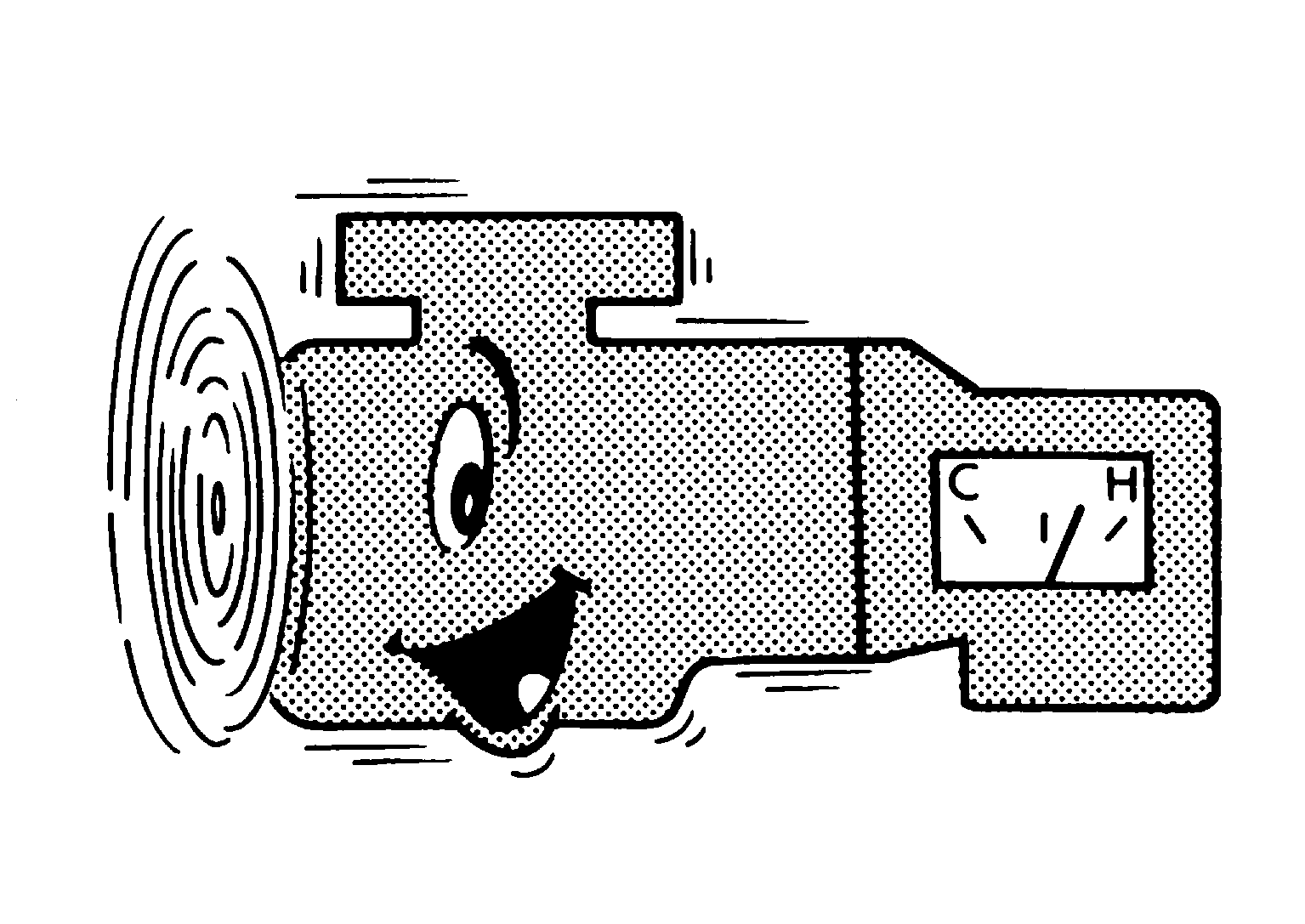

Fig 1: Checking A/T Fluid (Normal Operating Temperature)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install pressure gauge to corresponding line pressure port.

Fig 2: Installing Pressure Gauge To Corresponding Line Pressure Port
Courtesy of NISSAN MOTOR CO., U.S.A.
Set parking brake and block wheels.
- Continue to depress brake pedal fully while line pressure test is being performed at stall speed .

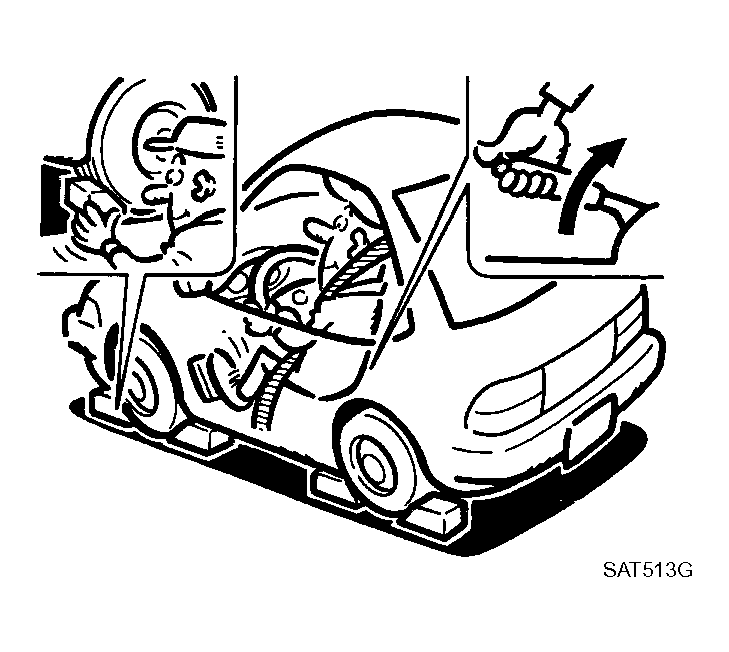

Fig 3: Blocking Wheels And Setting Parking Brake
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and measure line pressure at idle and stall speed.
- When measuring line pressure at stall speed, follow the stall test procedure .
  "LINE PRESSURE TEST " : Refer to SDS, "LINE PRESSURE "

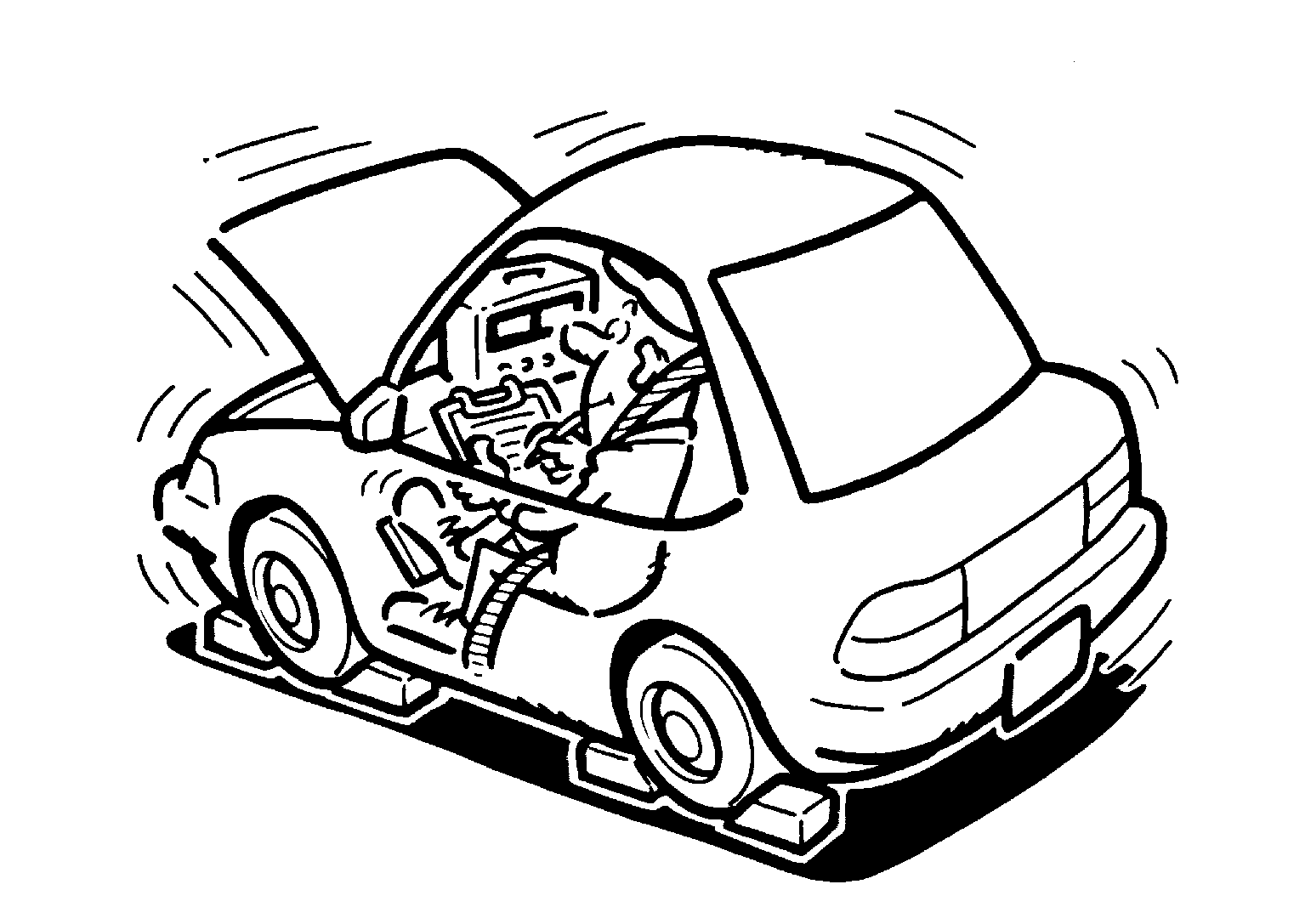

Fig 4: Measuring Line Pressure
Courtesy of NISSAN MOTOR CO., U.S.A.
