System Diagram (M/T Models)

WARNING: This page is about a different car, the 2006 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

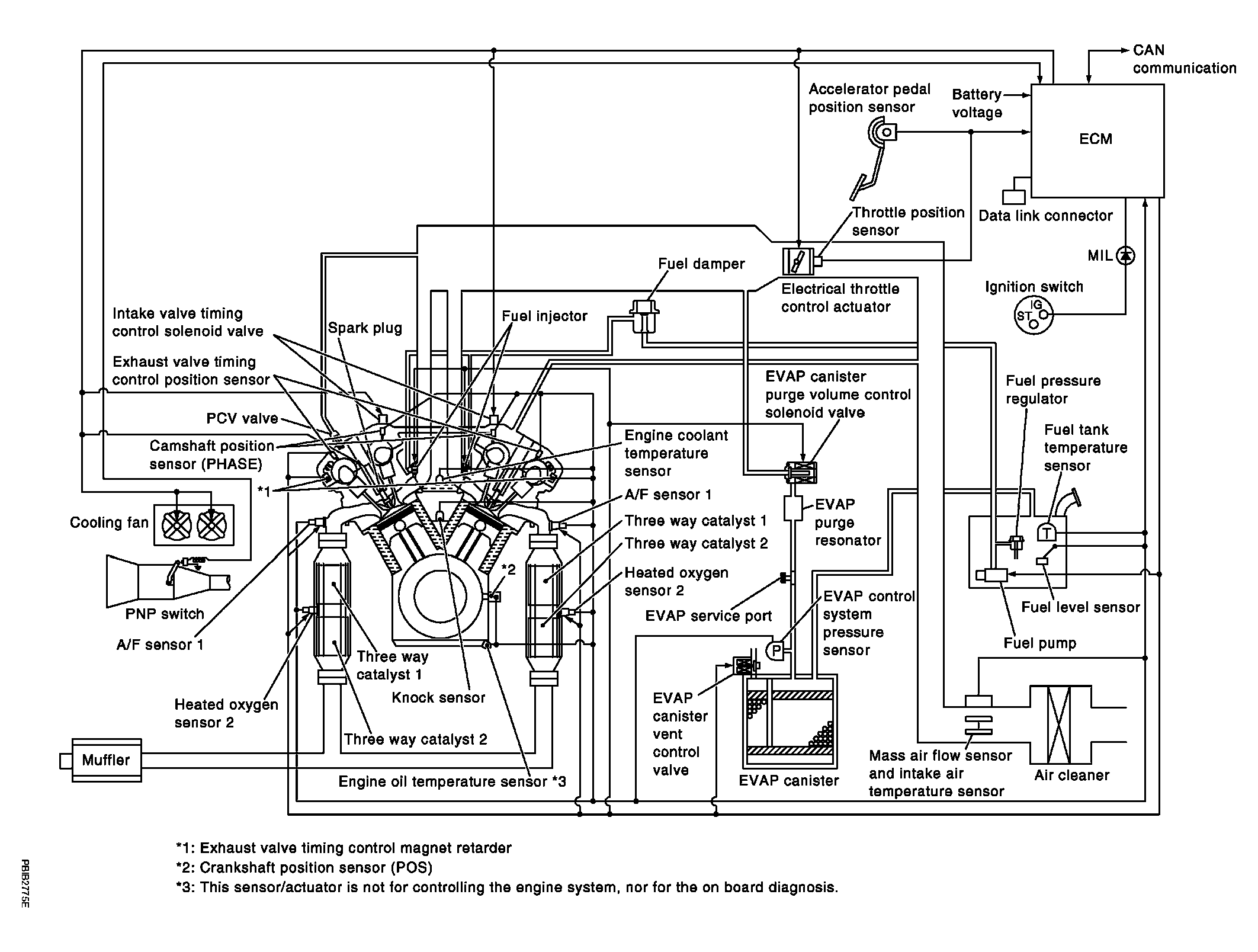

Fig 1: Engine Control - System Diagram (M/T Models)

Courtesy of NISSAN NORTH AMERICA, INC.
