System - Basic Engine Control System

WARNING: This page is about a different car, the 2006 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

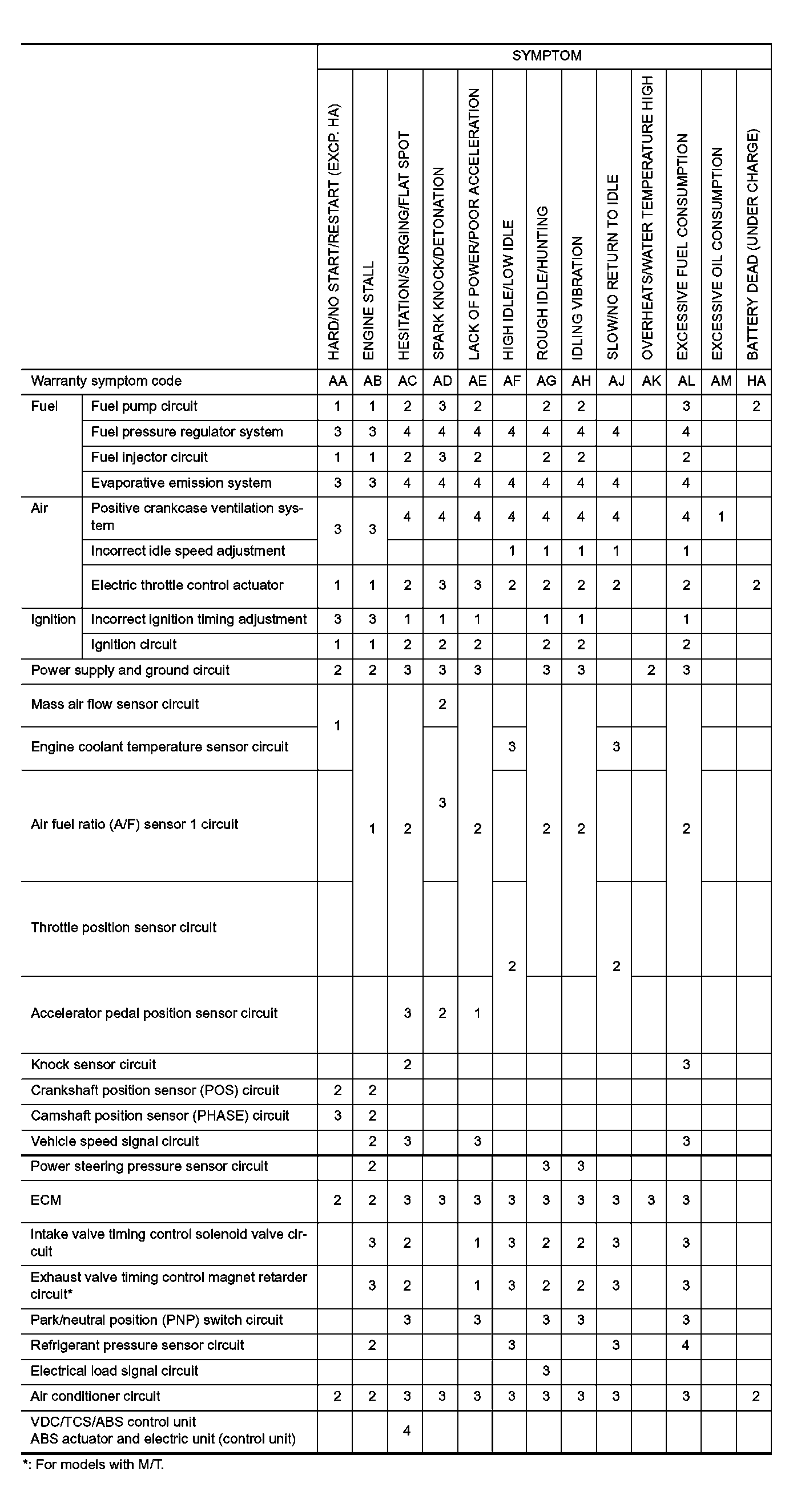

Fig 1: Symptom Matrix - Basic Engine Control Chart

Courtesy of NISSAN NORTH AMERICA, INC.
