Engine Control Component Parts Location

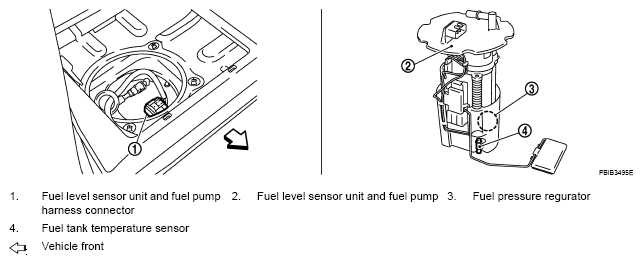

Fig 1: Identifying Engine Control Component Parts Location (1 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

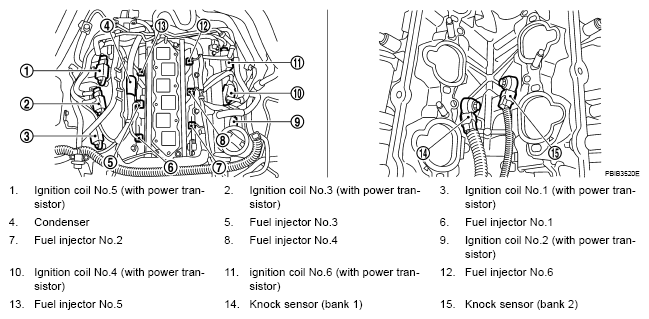

Fig 2: Identifying Engine Control Component Parts Location (2 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

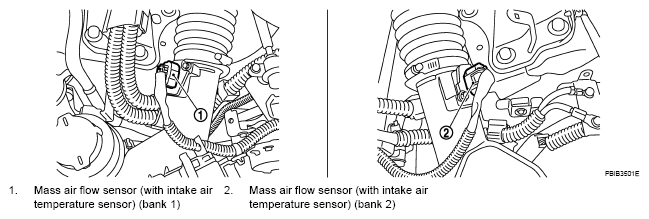

Fig 3: Identifying Engine Control Component Parts Location (3 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

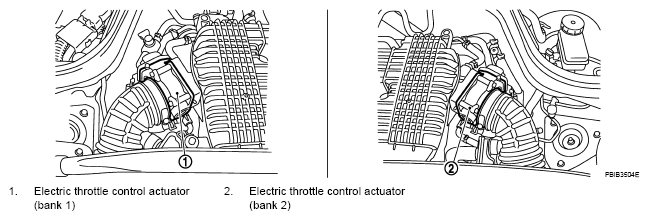

Fig 4: Identifying Engine Control Component Parts Location (4 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

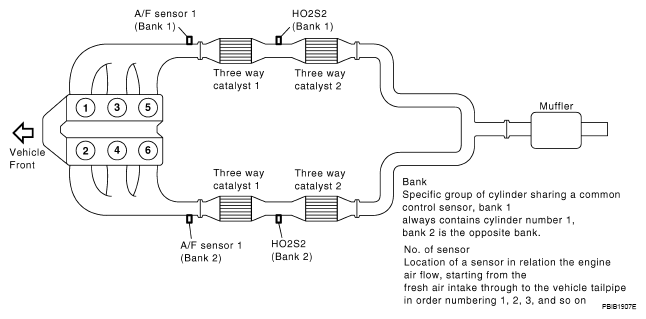

Fig 5: Identifying Engine Control Component Parts Location (5 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

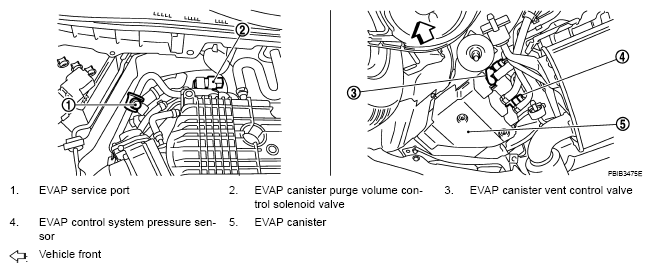

Fig 6: Identifying Engine Control Component Parts Location (6 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

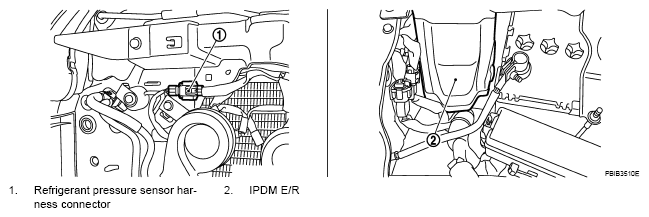

Fig 7: Identifying Engine Control Component Parts Location (7 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

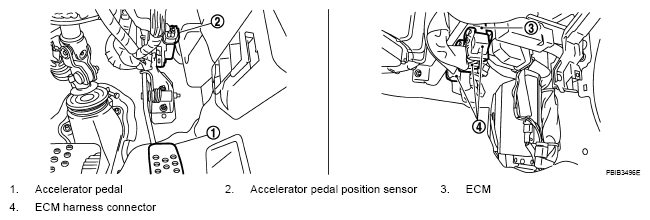

Fig 8: Identifying Engine Control Component Parts Location (8 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

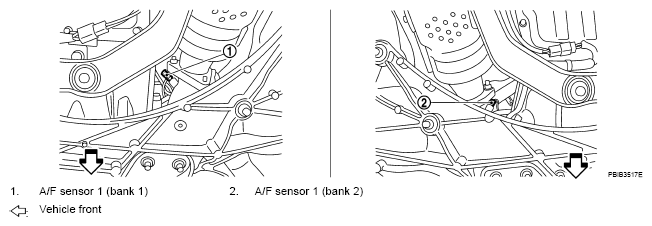

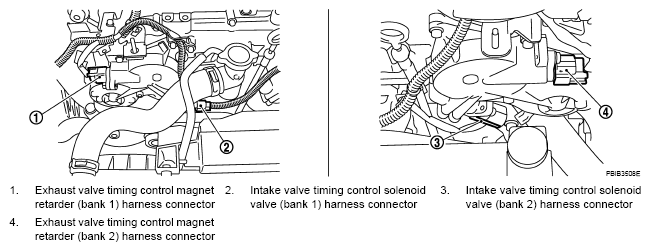

Fig 9: Identifying Engine Control Component Parts Location (9 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

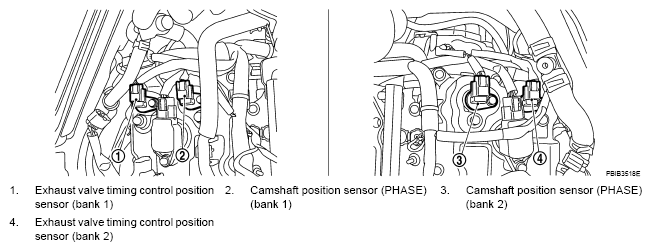

Fig 10: Identifying Engine Control Component Parts Location (10 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

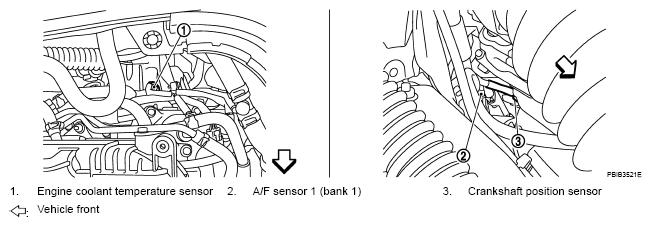

Fig 11: Identifying Engine Control Component Parts Location (11 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

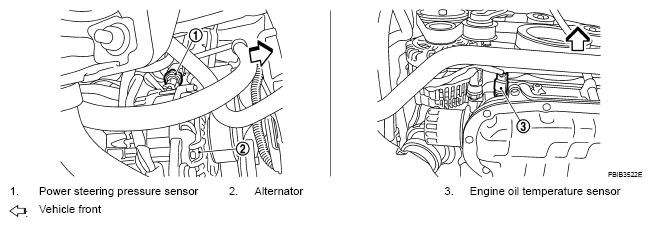

Fig 12: Identifying Engine Control Component Parts Location (12 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

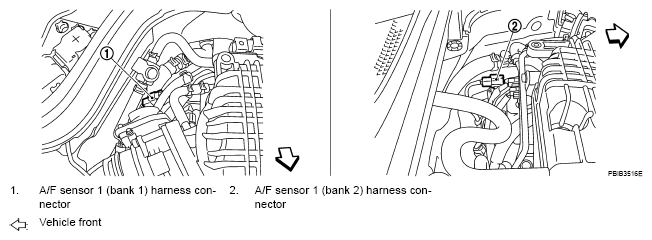

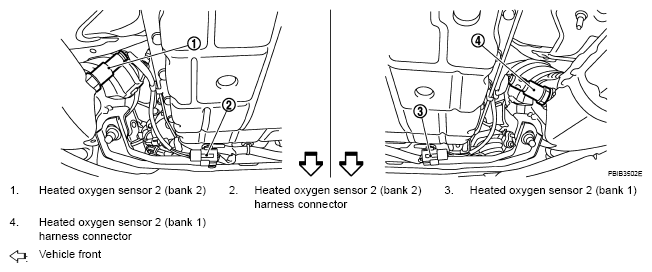

Fig 13: Identifying Engine Control Component Parts Location (13 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

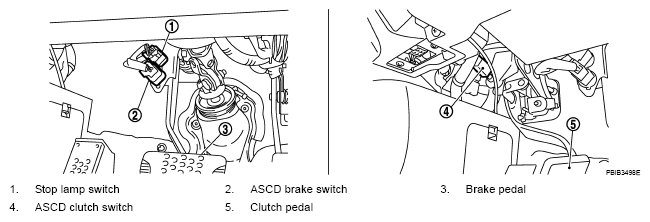

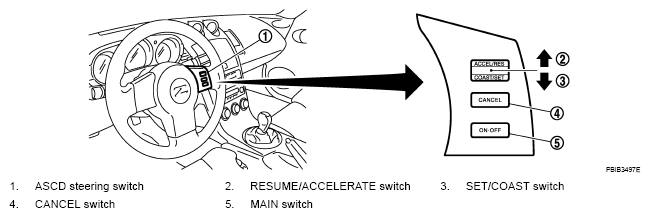

Fig 14: Identifying Engine Control Component Parts Location (14 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

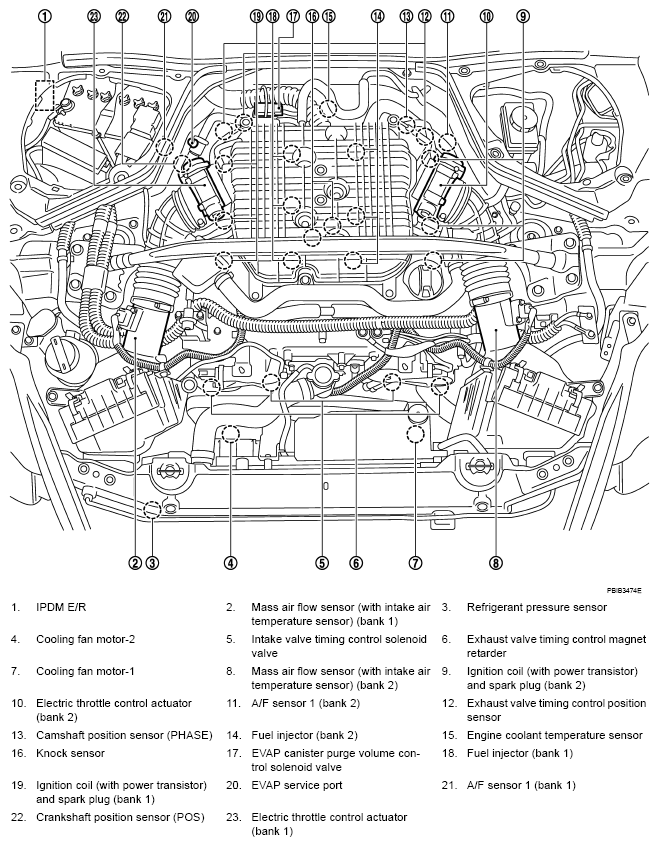

Fig 15: Identifying Engine Control Component Parts Location (15 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

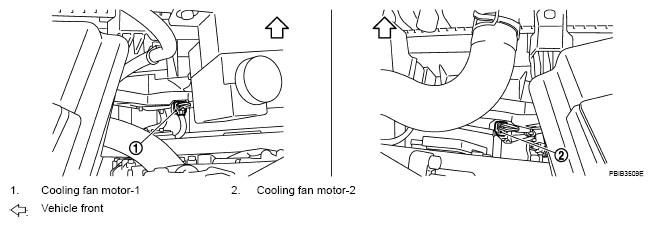

Fig 16: Identifying Engine Control Component Parts Location (16 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Engine Control Component Parts Location (17 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Engine Control Component Parts Location (18 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Engine Control Component Parts Location (19 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.
