Exploded View: Component

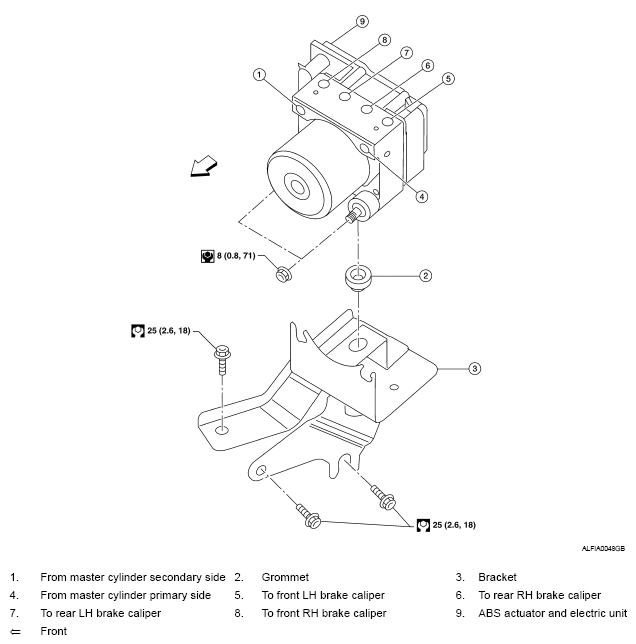

Fig 1: ABS Actuator And Electric Unit (Control Unit) Replacement Components With Torque Specifications

G04887209

Refer to "COMPONENTS " for symbol marks in the figure.
