Component Parts Location

Fig 1: Identifying Automatic Speed Control Device Component Location (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

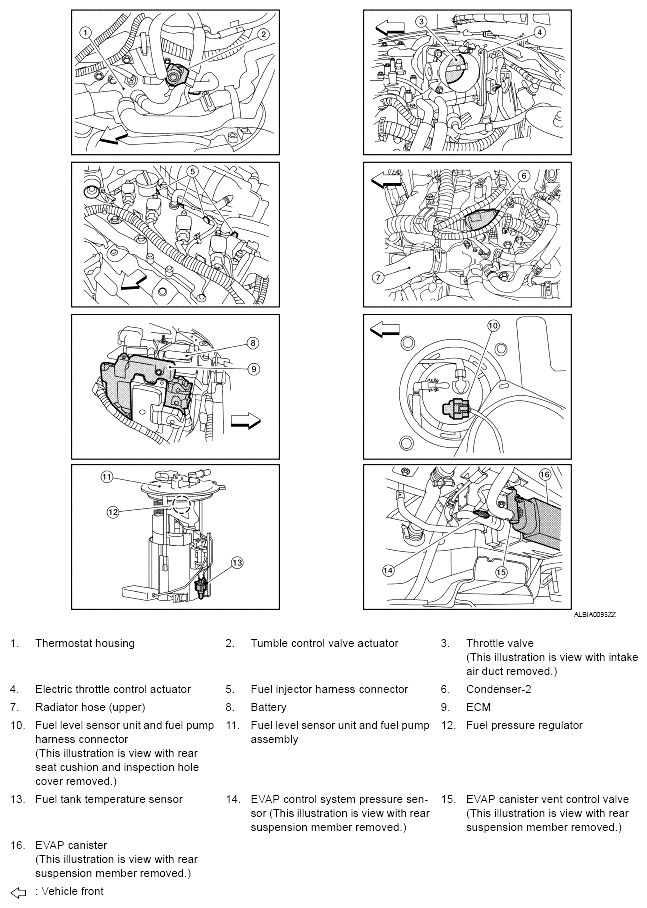

Fig 2: Identifying Automatic Speed Control Device Component Location (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

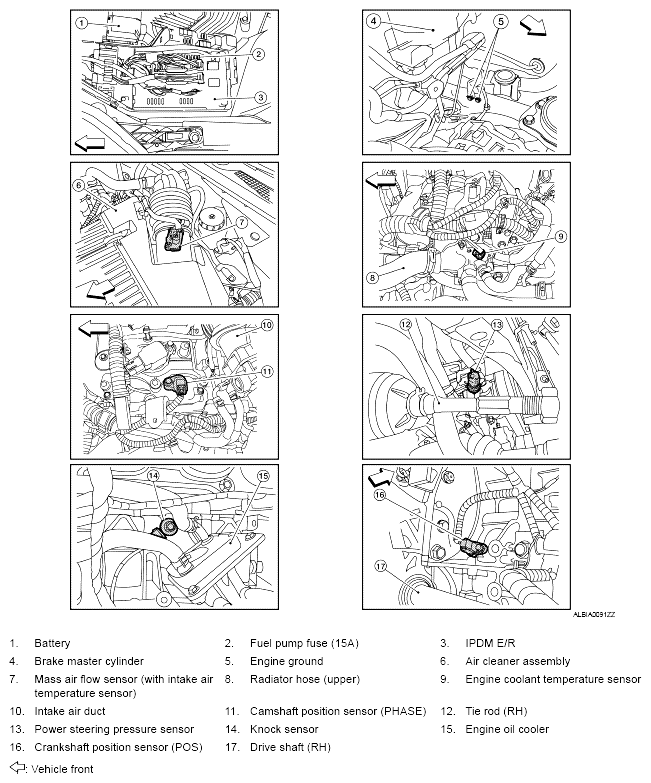

Fig 3: Identifying Automatic Speed Control Device Component Location (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

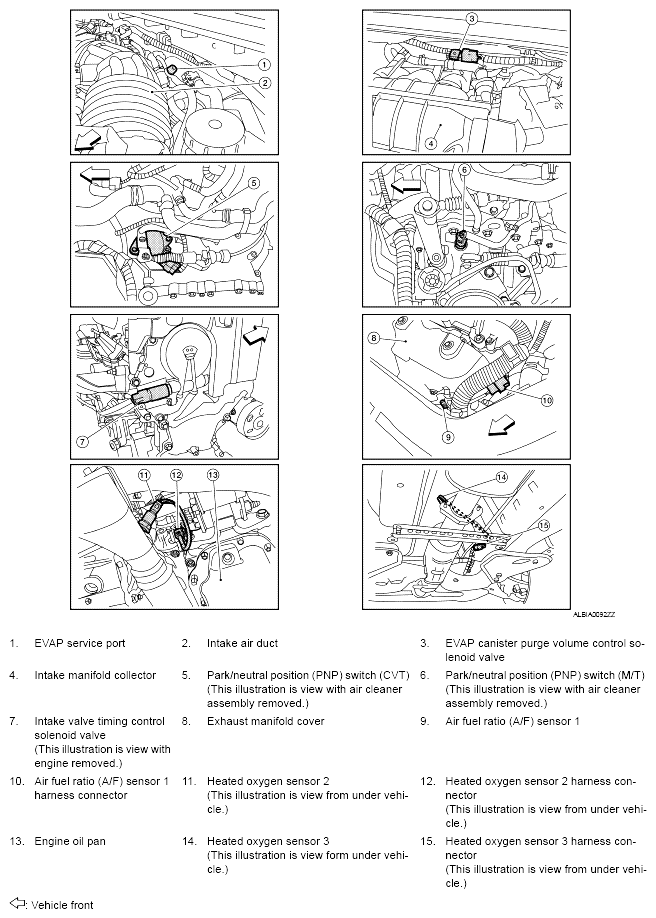

Fig 4: Identifying Automatic Speed Control Device Component Location (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

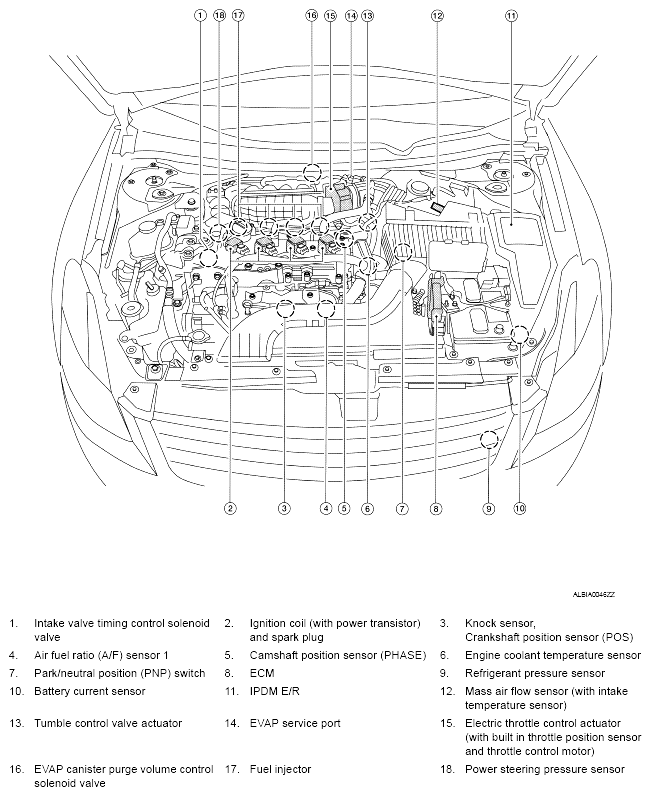

Fig 5: Identifying Automatic Speed Control Device Component Location (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

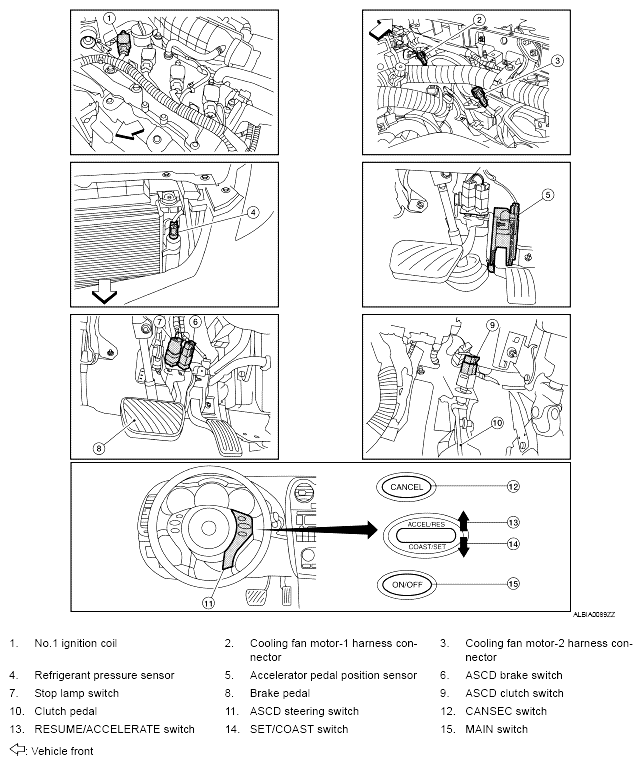

Fig 6: Identifying Automatic Speed Control Device Component Location (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
