IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to No. 1 ignition coil (1) wire as shown.

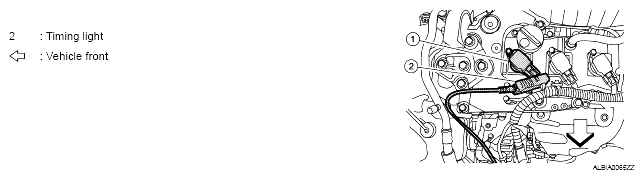

  Fig 1: Attaching Timing Light To No. 1 Ignition Coil
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

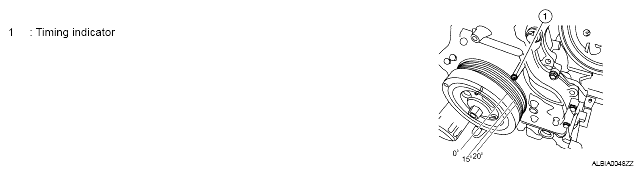

  Fig 2: Checking Ignition Timing
  Courtesy of NISSAN NORTH AMERICA, INC.

  : INSPECTION END
