Shaft And Gear

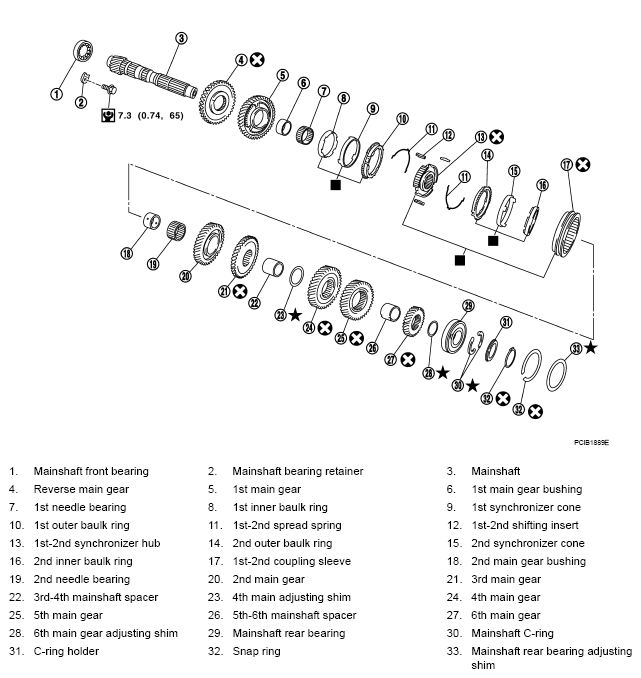

Fig 1: Exploded View Of Transaxle Assembly (2 Of 5)

: Replace the parts as a set.

Refer to "COMPONENTS " for symbols not described on the above.

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

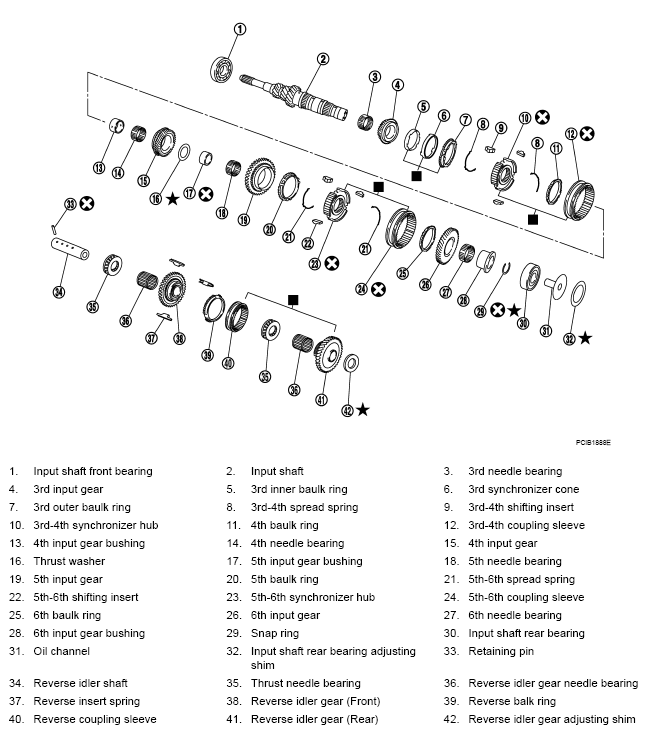

  Fig 2: Exploded View Of Transaxle Assembly (3 Of 5)



  : Replace the parts as a set.

  Refer to "COMPONENTS " for symbols not described on the above.

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.
