Triple-Cone Synchronizer

Triple-cone synchronizer are adopted for 1st and 2nd gears to reduce operating force of the shift lever.

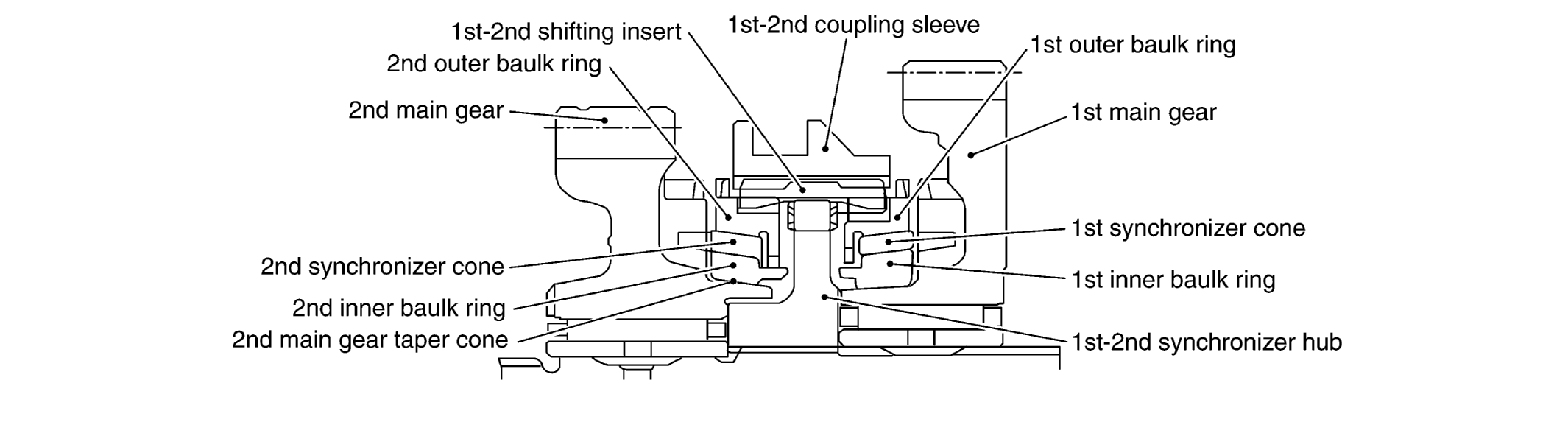

Fig 1: Identifying Triple-Cone Synchronizer Components
G04888814
