Engine Control System - Component Testing (VQ35DE)
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System-Basic Engine Control System
System-Basic Engine Control System

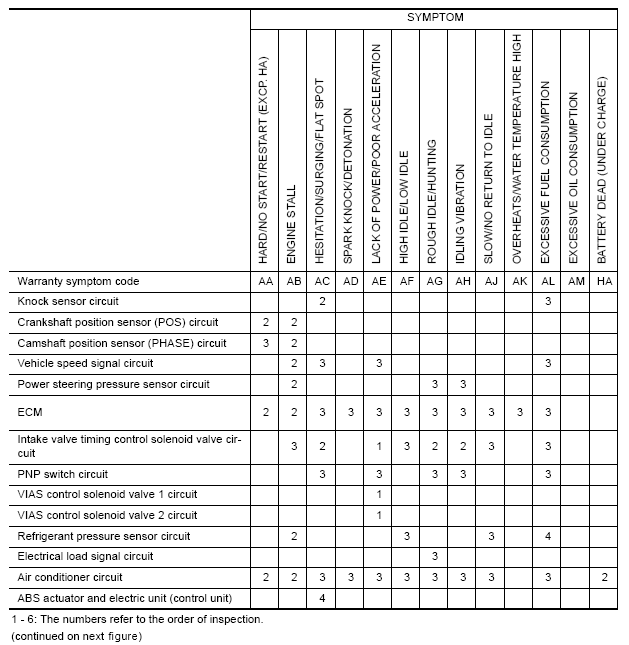

Fig 1: Symptom Chart For System Basic Engine Control System (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

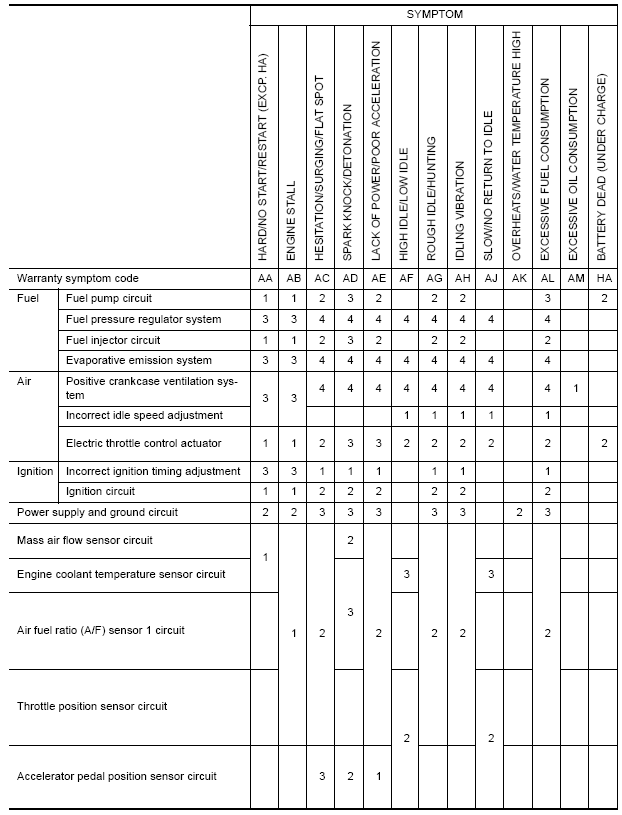

Fig 2: Symptom Chart For System Basic Engine Control System (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
