Engine Control Component Parts/Control System Application

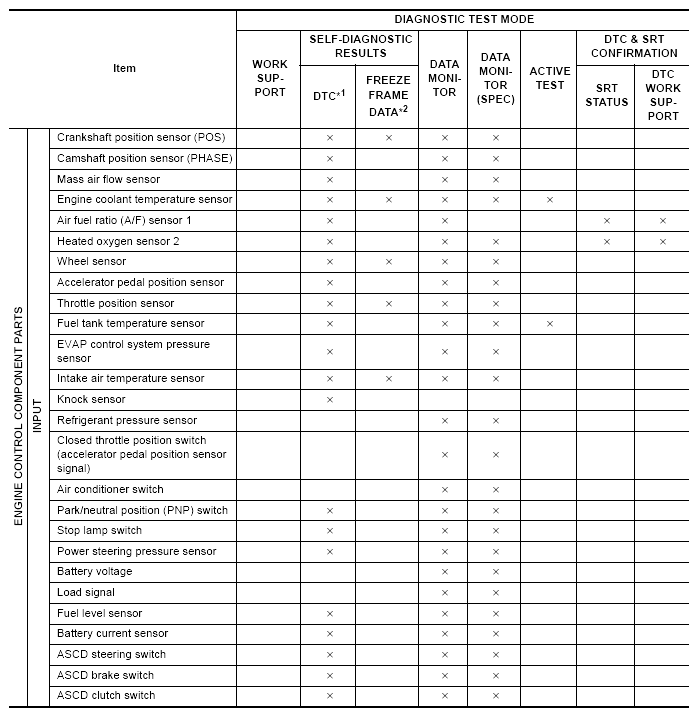

Fig 1: Engine Control Component Parts/Control System Application Reference Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

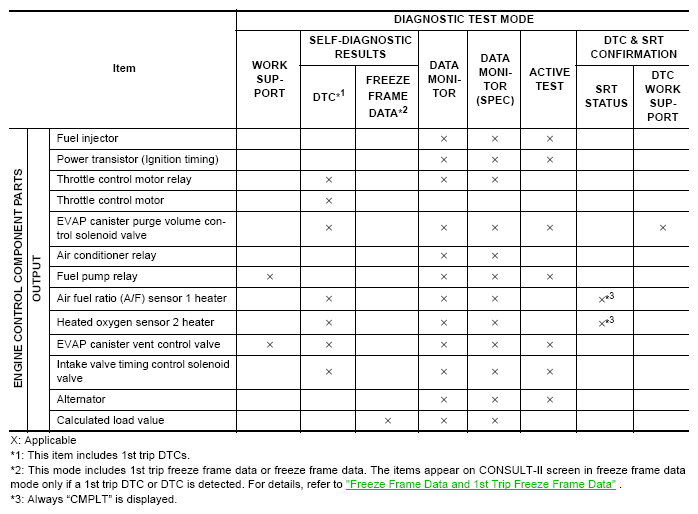

Fig 2: Engine Control Component Parts/Control System Application Reference Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

For Freeze Frame Data and 1st Trip Freeze Frame Data, go to FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA .
