Section 7 (Engine Control System - Introduction (VQ))
›
Trouble Diagnosis
›
CONSULT-II Function (ENGINE)
›
Engine Control Component Parts/Control Systems Application
Engine Control Component Parts/Control Systems Application
WARNING:
This page is about a different variant/trim than selected.

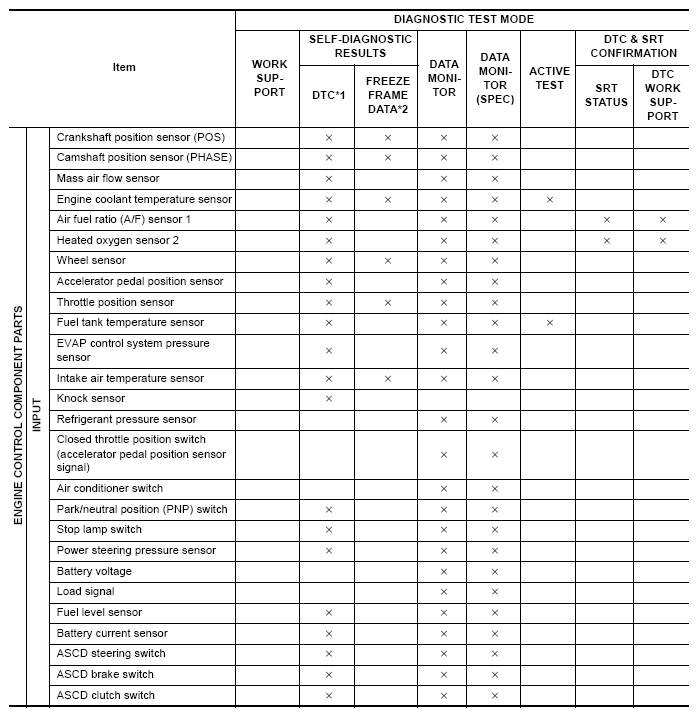

Fig 1: Identifying Engine Control Component Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

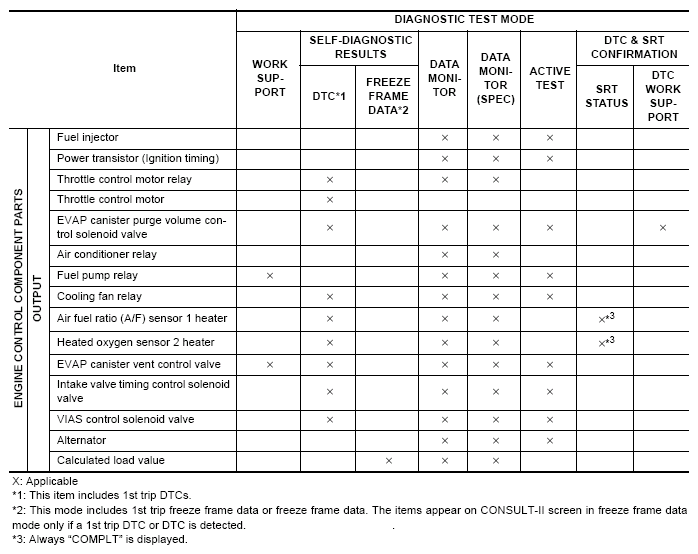

Fig 2: Identifying Engine Control Component Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
