Removal and Installation: Notes

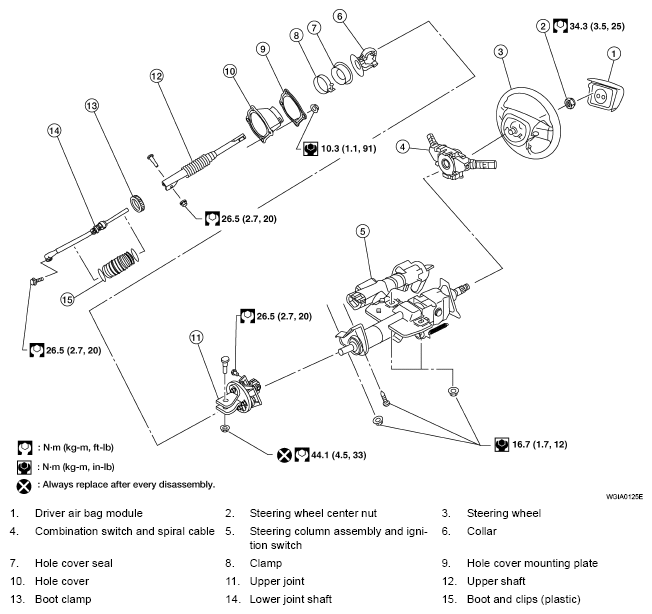

Fig 1: Removal/Installation Of Steering Column

CAUTION:

• Do not exert any axial load or impact to the steering column.
• Do not move the steering gear while the steering column assembly is removed.
