Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring new BCM after installation. Refer to "CONFIGURATION ".

Disconnect negative battery cable.
Remove lower driver instrument panel. Refer to "LOWER DRIVER INSTRUMENT PANEL ".
Remove screws (2) and release BCM from steering member.

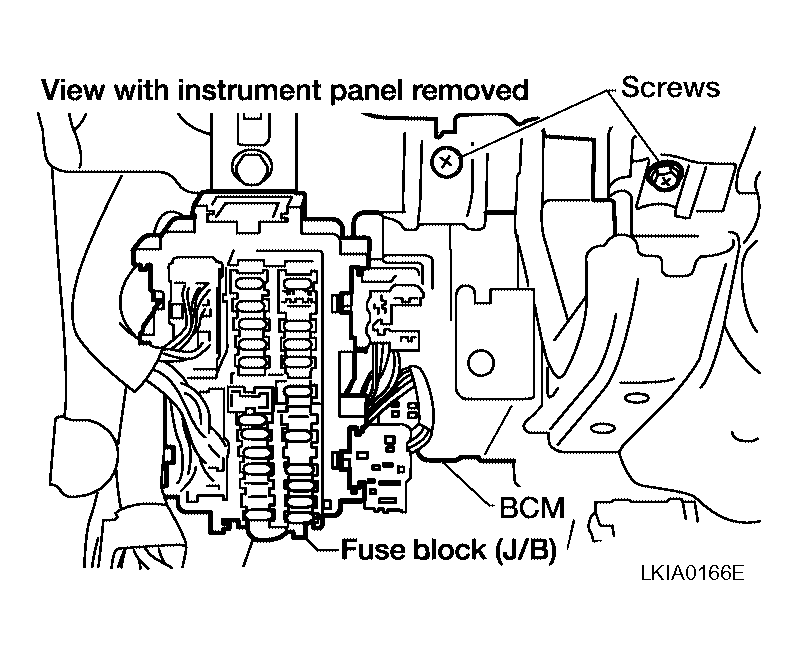

Fig 1: Removing/Installing BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect connectors and then remove BCM.
