DTC P2101 Electric Throttle Control Function: Wiring Diagram

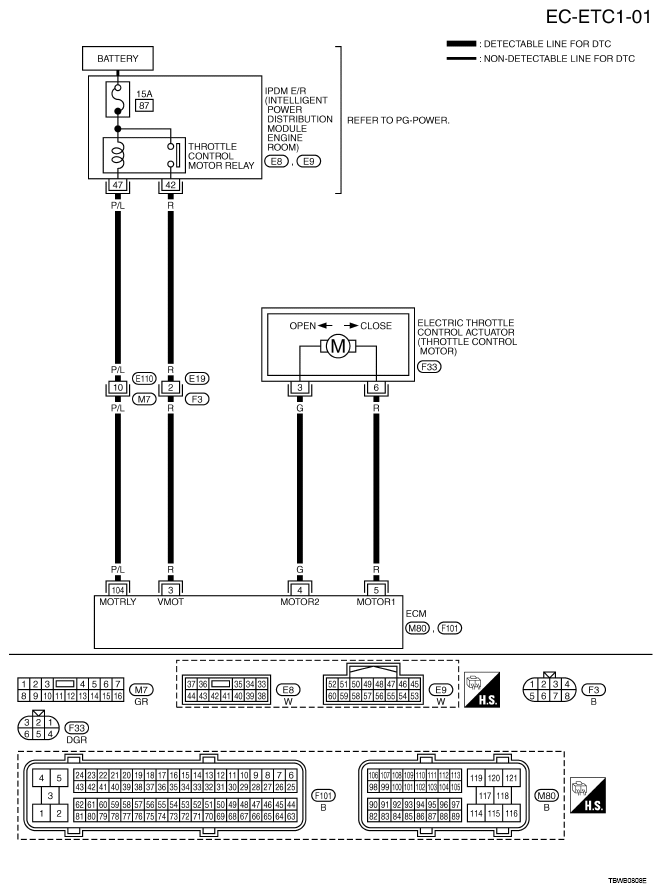

Fig 1: EC-ETC1-01 - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

INPUT/OUTPUT VOLTAGE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
3	R	Throttle control motor relay power supply	[Ignition switch: ON]	BATTERY VOLTAGE (11 - 14V)
4	G	Throttle control motor (Close)	Ignition switch: ON] Engine stopped Shift lever: D Accelerator pedal: Fully released	Courtesy of NISSAN NORTH AMERICA, INC.
5	R	Throttle control motor (Open)	[Ignition switch: ON] Engine stopped Shift lever: D Accelerator pedal: Fully depressed	Courtesy of NISSAN NORTH AMERICA, INC.
104	P/L	Throttle control motor relay	[Ignition switch: OFF]	BATTERY VOLTAGE (11 - 14V)
			[Ignition switch: ON]	0 - 1.0V
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
