Engine Control System - Introduction
›
Engine Control System
›
System Diagram
System Diagram

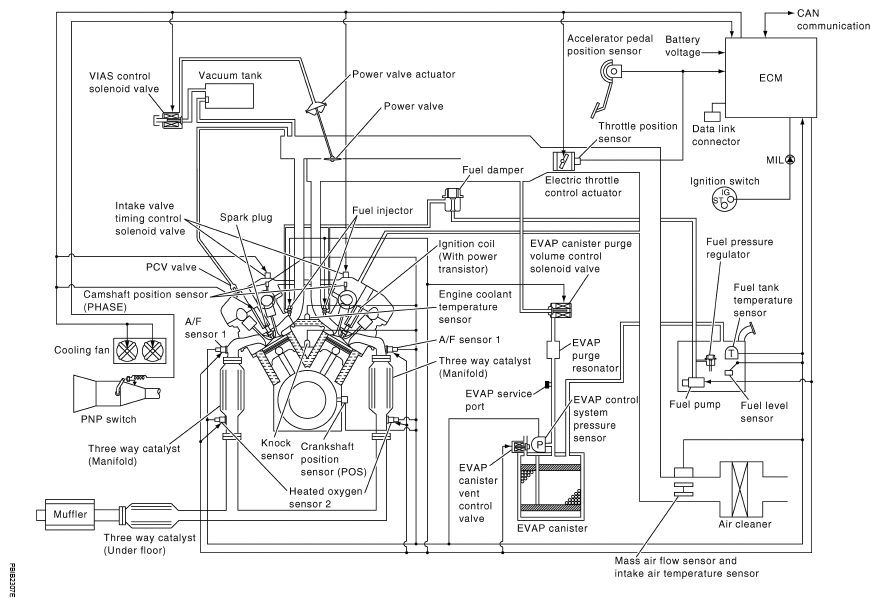

Fig 1: Engine Control System - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
