Power Door Lock System
›
Schematic
›
With Intelligent Key
With Intelligent Key

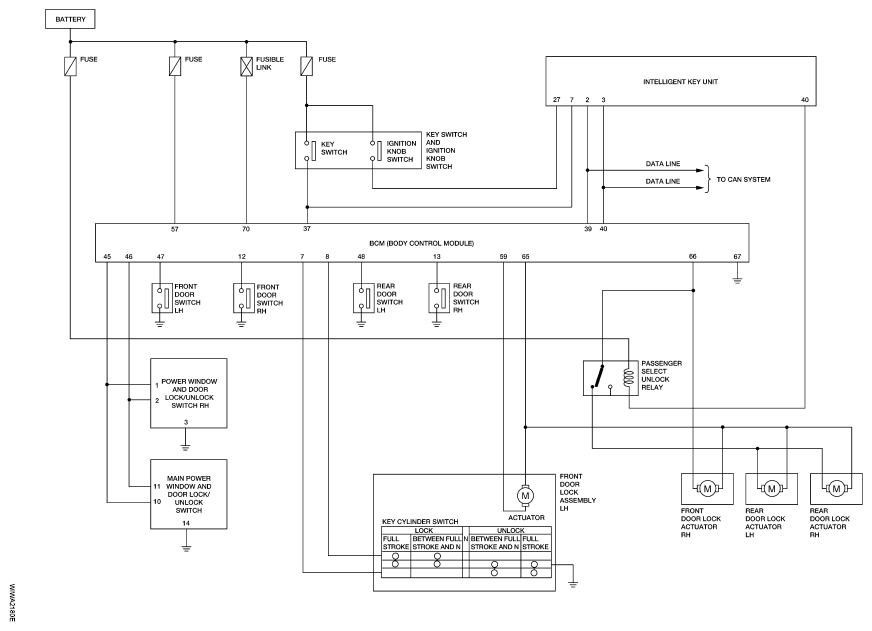

Fig 1: Schematic Diagram (With Intelligent Key)
