Removal and Installation: Notes

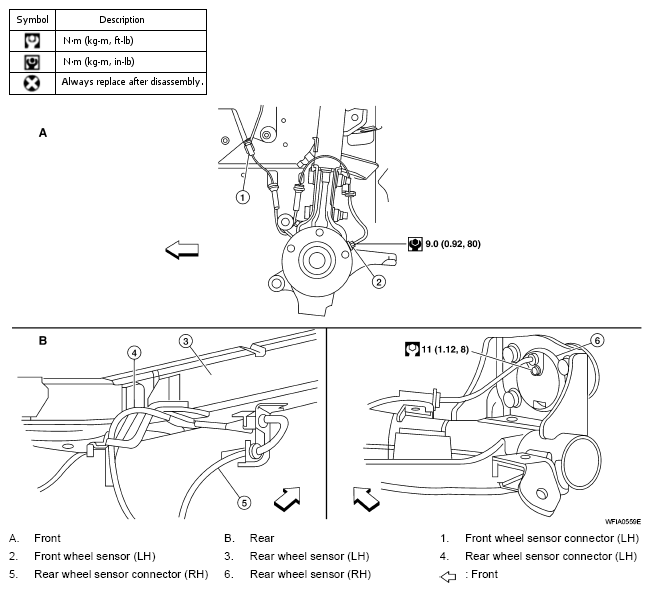

Fig 1: Wheel Sensors Replacement Components With Torque Specifications

Refer to GENERAL INFORMATION for symbol marks in the figure.

NOTE: The top portion of the figure (front side) shows view from LH side of vehicle. RH side is the mirror image.
