Disassembly and Assembly: Notes

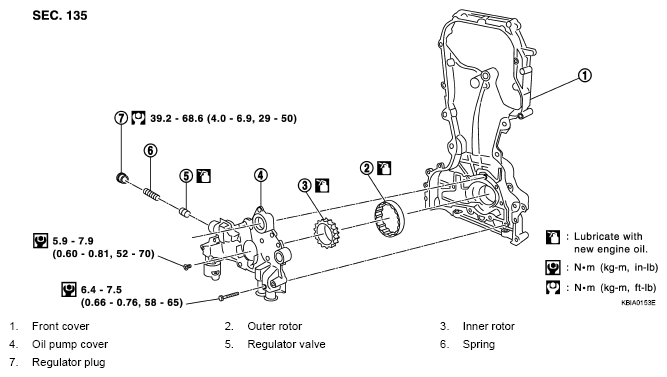

Fig 1: Oil Pump Replacement Components With Torque Specifications

G04924996

CAUTION: Before installation, apply new engine oil to the parts as instructed in the figure above.
