Disassembly and Assembly: Notes

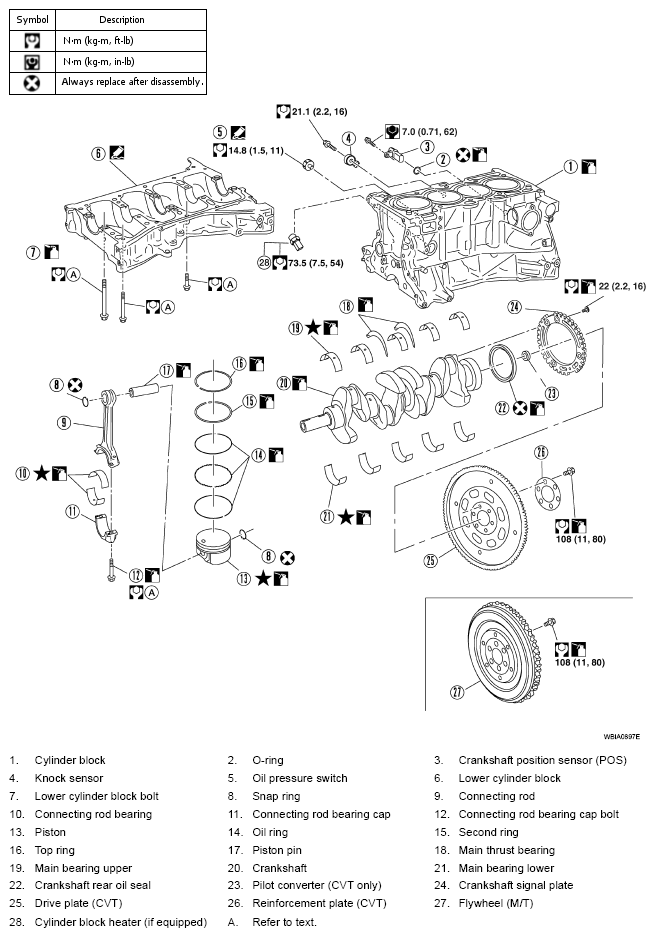

Fig 1: Cylinder Block Replacement Components With Torque Specifications

G04924887

CAUTION: Apply new engine oil to parts marked in illustration before installation.
