Drive Shaft: Components

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Circular clips should be properly meshed with differential side gear (transaxle side) and with joint assembly (wheel side). Make sure they will not come out.
Be careful not to damage boots. Use suitable protector or cloth during removal and installation.

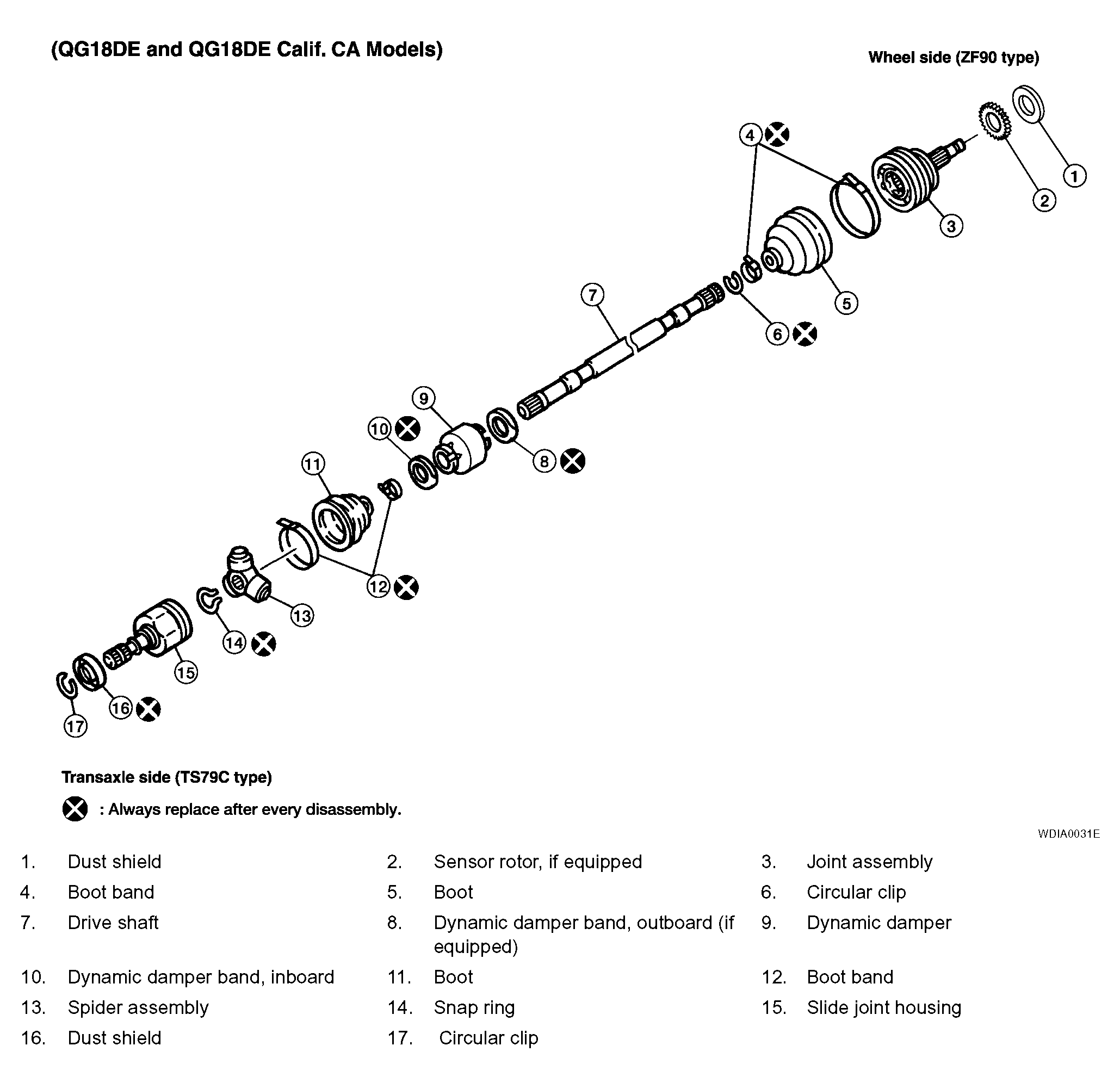

Fig 1: Disassembling View Of Drive Shaft Components (QG18DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

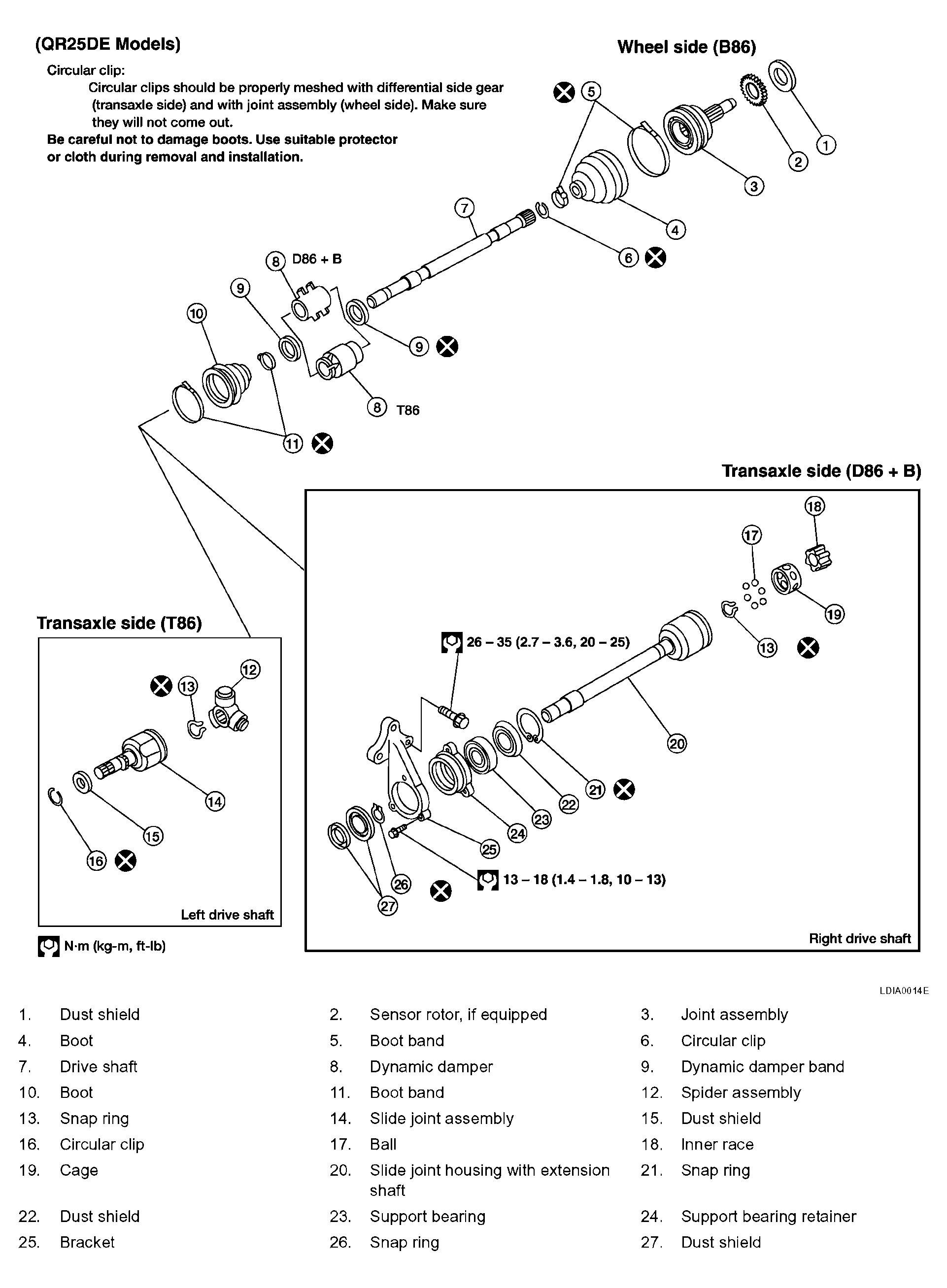

Fig 2: Disassembling View Of Drive Shaft Components With Torque Specifications (QR25DE) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

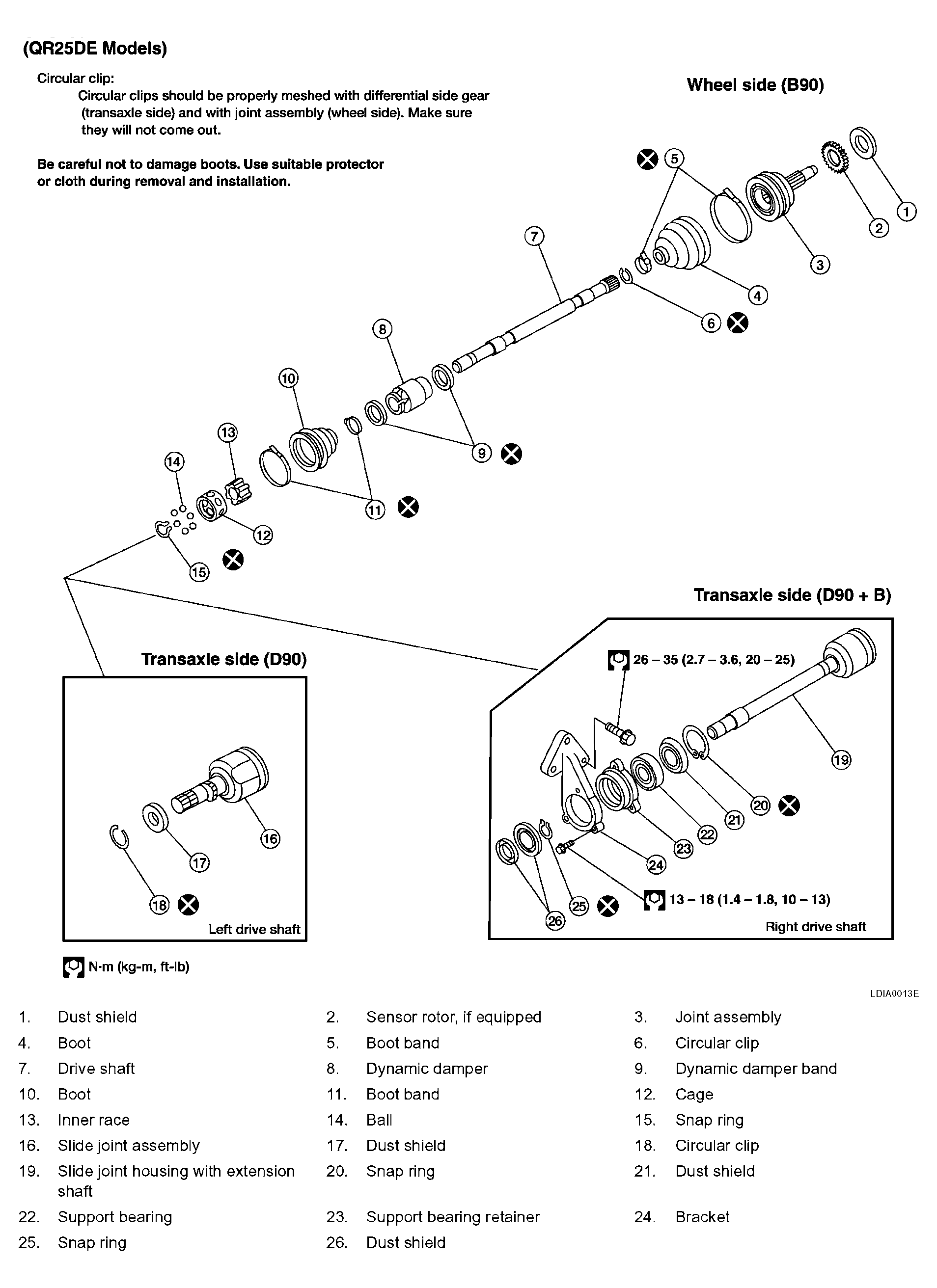

Fig 3: Disassembling View Of Drive Shaft Components With Torque Specifications (QR25DE) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
